Torex recommends a compact PCB layout with short traces and minimal vias to reduce noise and parasitic inductance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
To ensure output voltage stability, use a minimum output capacitance of 10uF with an ESR of 10mΩ or less. Additionally, place a 1uF ceramic capacitor in parallel with the output capacitor to filter high-frequency noise. Also, ensure the input voltage is within the recommended range and the device is operated within the specified temperature range.
The maximum ambient temperature for XCL223A333D2-G is 85°C. However, the device can operate up to 105°C with derating. Refer to the datasheet for derating curves and thermal management guidelines.
Yes, XCL223A333D2-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard and is manufactured using a robust process with built-in reliability features. However, additional testing and validation may be required for specific applications.
To troubleshoot issues with XCL223A333D2-G, first verify the input voltage, output load, and PCB layout meet the recommended specifications. Check for noise and ripple on the input and output lines using an oscilloscope. Also, ensure the device is operated within the specified temperature range and the output capacitors are properly selected and placed.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL223A333D2-G Overview

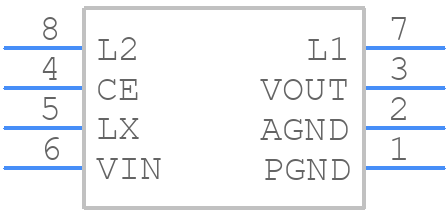

Use the download button to access the XCL223A333D2-G schematic symbol, PCB footprint, and 3D model.
