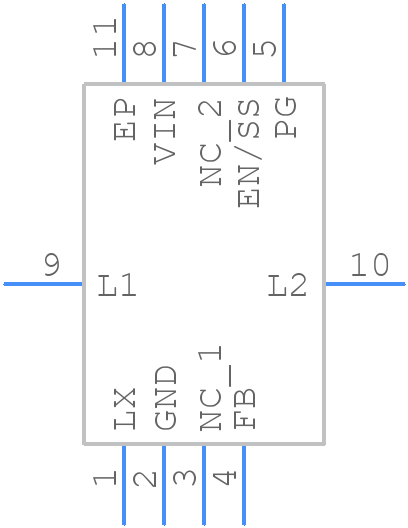

Symbol
XCL230B0K1H2 - Torex - PCB symbol
click to zoom
PCB Footprints
XCL230B0K1H2 - Torex PCB footprint - Other - Other - XCL230B0K1H2-1
click to zoom
3D Models
XCL230B0K1H2 - Torex - 3D model - Other - XCL230B0K1H2-1
click to zoom

XCL230B0K1H2 Details

  • Manufacturer Part Number:

    XCL230B0K1H2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-03-26

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    1 V

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1302 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    3 mm
