XCL238B123D2-G - Torex

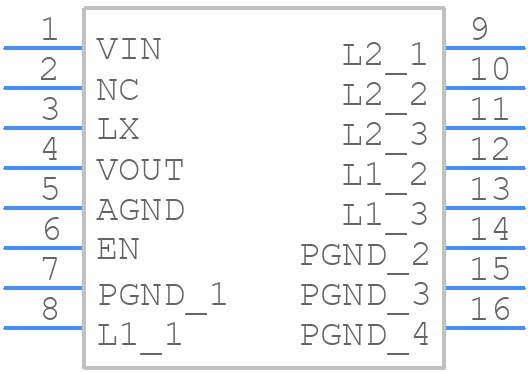

XCL238B123D2-G Details

• Manufacturer Part Number:

  XCL238B123D2-G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  USP-9

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Torex Semiconductor LTD

• YTEOL:

  10

• Additional Feature:

  PFM CONTROL TECHNIQUE ALSO AVAILABLE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.5 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  R-XQCC-N9

• Length:

  3.2 mm

• Number of Functions:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.5 A

• Output Voltage-Max:

  1.2240000000000002 V

• Output Voltage-Min:

  1.1760000000000002 V

• Output Voltage-Nom:

  1.2000000000000002 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC9,.08X.12(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.05 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  3000 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.45 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  10

• Width:

  2.5 mm
