Part Image

XCL242B171KR-G - Torex

Description: HiSAT-COT® Control 0.5A Inductor Built-in Step-Down “micro DC/DC” Converters

Download XCL242B171KR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

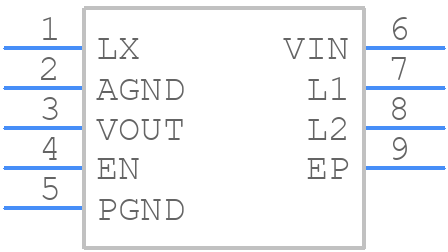

XCL242B171KR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL242B171KR-G - Torex PCB footprint - Other - Other - CL-2025-02
click to zoom
3D Models
XCL242B171KR-G - Torex - 3D model - Other - CL-2025-02
click to zoom

XCL242B171KR-G Details

  • Manufacturer Part Number:

    XCL242B171KR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCL242B171KR-G Overview

Use the download button to access the XCL242B171KR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL24, or try a keyword search, such as Switching Regulator or Controllers
