XCL244B333D2-G - Torex

Description: HiSAT-COT ® Control 700mA Inductor Built-in Step-Down “micro DC/DC” Converters

Download XCL244B333D2-G Model

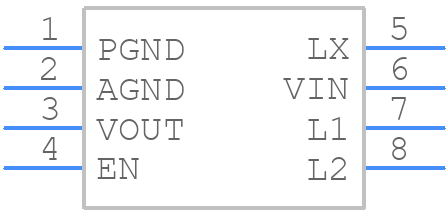

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL244B333D2-G - Torex PCB footprint - Other - Other - USP-8B04
click to zoom
3D Models
XCL244B333D2-G - Torex  - 3D model - Other - USP-8B04
click to zoom

XCL244B333D2-G Details

  • Manufacturer Part Number:

    XCL244B333D2-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

XCL244B333D2-G Frequently Asked Questions (FAQs)

  • Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the PCB traces should be kept short and wide to minimize impedance.
  • To ensure stability, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. The output capacitor should be placed close to the IC, and the PCB layout should be designed to minimize the loop area of the output capacitor and the IC.
  • The maximum ambient temperature range for XCL244B333D2-G is -40°C to +85°C. However, the device can operate up to +105°C with derating. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
  • Yes, XCL244B333D2-G is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress and vibration-induced failures.
  • To troubleshoot issues with XCL244B333D2-G, start by checking the input voltage, output voltage, and current consumption. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, and ensure that the PCB layout is correct and meets the recommended design guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCL244B333D2-G Overview

Use the download button to access the XCL244B333D2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL24, or try a keyword search, such as Switching Regulator or Controllers
