Description:Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ System On Chip (SOC) IC Versal™ AI Core Versal™ AI Core FPGA, 1.9M Logic Cells 600MHz, 1.3GHz 2197-FCBGA (45x45)
The maximum operating frequency of the XC7V1902T-1MSIVSVA2197 is 500 MHz.
You can implement a DDR3 memory interface on the XC7V1902T-1MSIVSVA2197 using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for the DDR3 interface.
The power consumption of the XC7V1902T-1MSIVSVA2197 depends on various factors such as the operating frequency, voltage, and design complexity. However, according to the datasheet, the typical static power consumption is around 2.5W, and the dynamic power consumption can range from 10W to 20W depending on the application.
Yes, the XC7V1902T-1MSIVSVA2197 is capable of supporting high-speed serial interfaces like PCIe and SATA. It has built-in transceivers that can operate at speeds up to 12.5 Gbps, making it suitable for high-speed serial applications.
You can use Xilinx's Vivado Design Suite, which provides a comprehensive development environment for designing, debugging, and verifying your FPGA design. The suite includes tools like Vivado Logic Analyzer, Vivado Serial I/O Analyzer, and Vivado Debug Hub to help you debug and verify your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCVC1902-1MSIVSVA2197 Overview

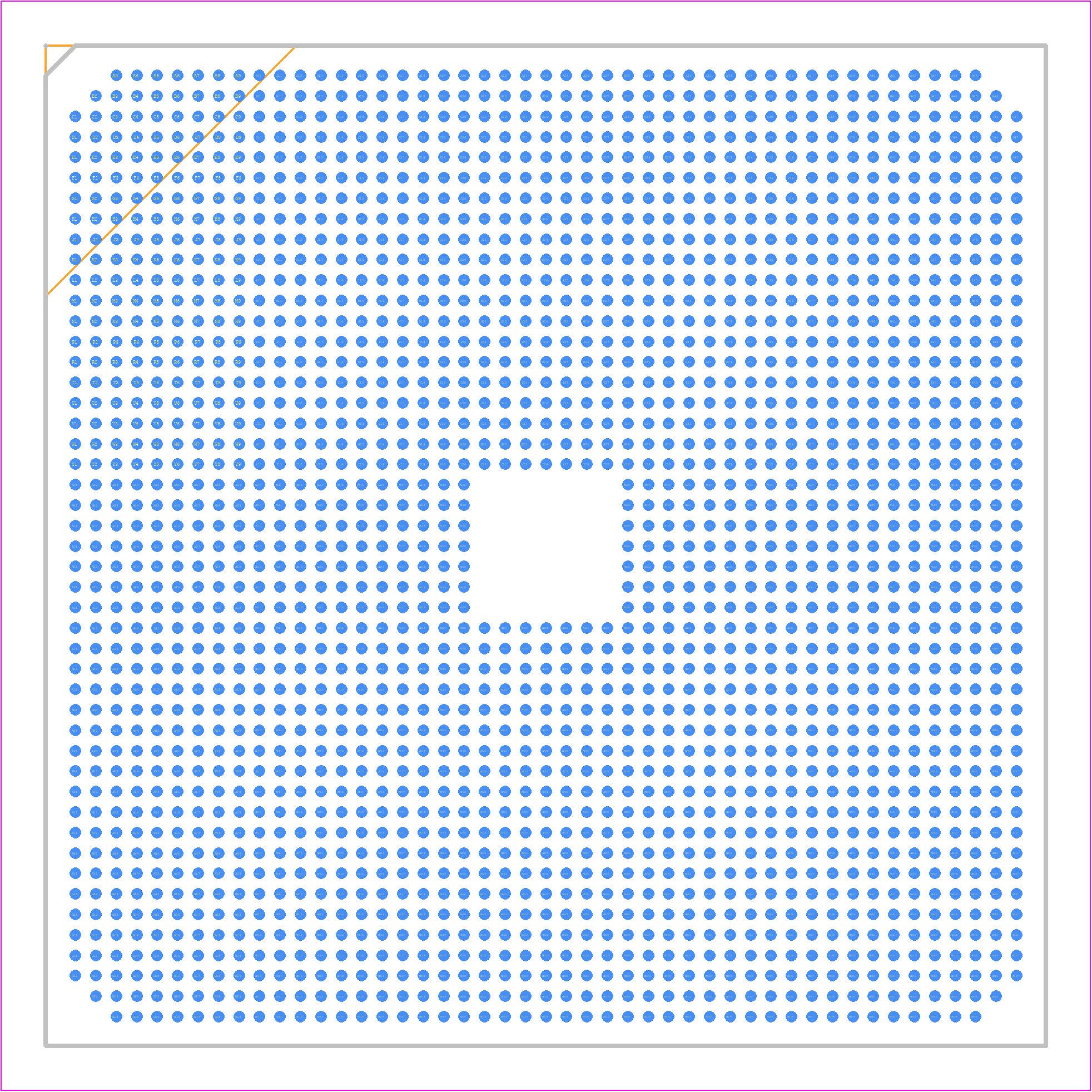

Use the download button to access the XCVC1902-1MSIVSVA2197 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCVC1,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
