The maximum operating frequency of the XC7V1902-2LLIVSVA2197 is 500 MHz.
You can implement a DDR3 memory interface using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for the DDR3 interface.
The power consumption of the XC7V1902-2LLIVSVA2197 depends on the specific design and usage. However, the typical static power consumption is around 2.5W, and the dynamic power consumption can range from 5W to 15W depending on the clock frequency and design activity.
Yes, the XC7V1902-2LLIVSVA2197 is capable of supporting high-speed serial interfaces like PCIe and SATA. It has built-in transceivers that can operate at speeds up to 12.5 Gbps.
You can use Xilinx's Vivado Design Suite, which provides a comprehensive development environment for designing, debugging, and verifying your FPGA design. You can also use the ChipScope Pro tool for debugging and verifying your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCVC1902-2LLIVSVA2197 Overview

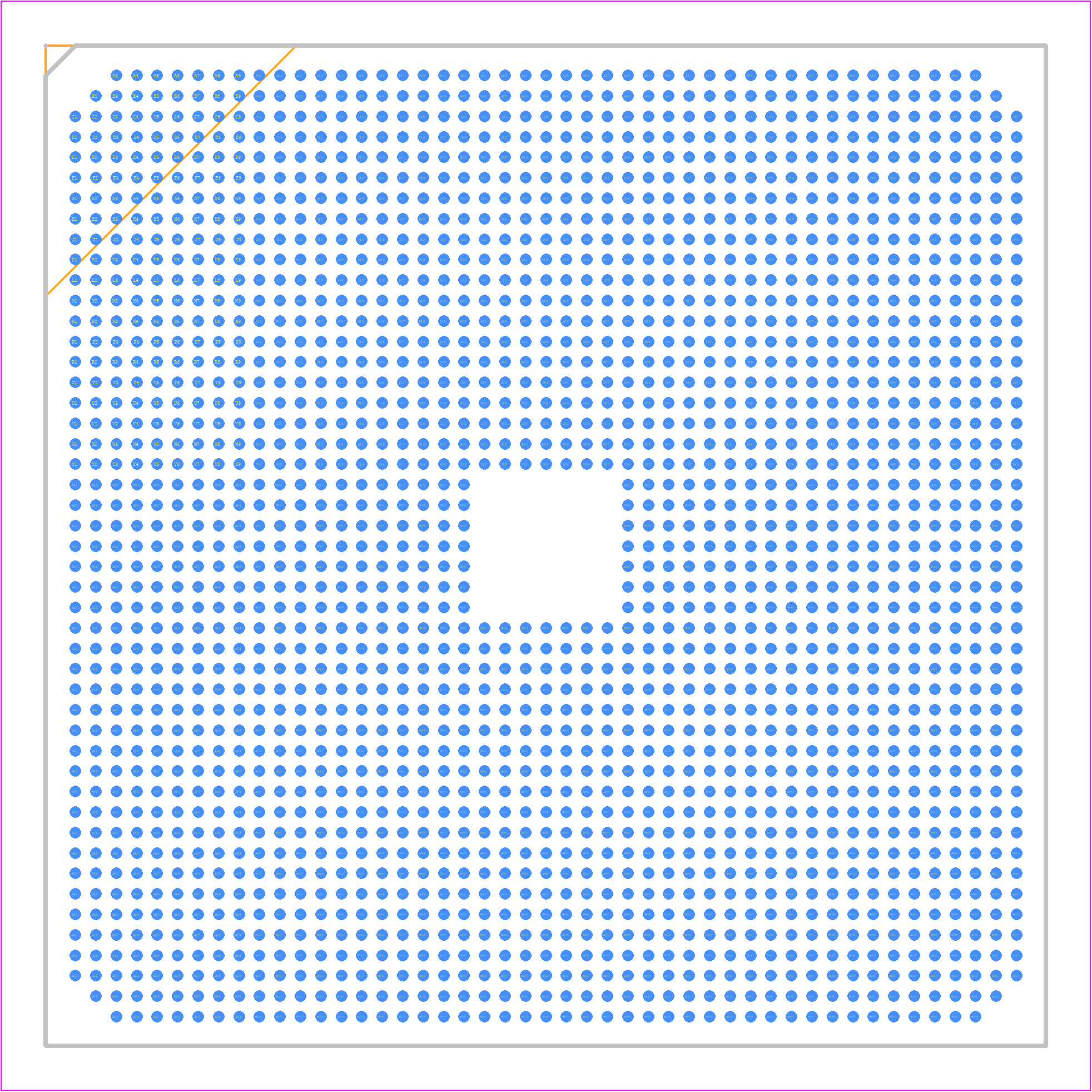

Use the download button to access the XCVC1902-2LLIVSVA2197 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCVC1,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
