The recommended PCB layout for optimal thermal performance can be found in the application note or design guide provided by the manufacturer. It typically includes guidelines for thermal vias, heat sinks, and component placement.
To troubleshoot issues with the power-on reset circuitry, check the power supply voltage, ensure proper decoupling, and verify the reset pin connections. Also, consult the device's errata sheet and application notes for specific guidance.
The recommended settings for the device's clock configuration can be found in the device's datasheet or application note. It typically includes information on clock frequencies, clock sources, and clock distribution.
To optimize the device's power consumption, use the power-saving features provided by the device, such as clock gating, power gating, and dynamic voltage and frequency scaling. Also, consider using low-power modes, reducing clock frequencies, and optimizing the system's power management.
The limitations of the device's I/O interfaces can be found in the device's datasheet or application note. Common limitations include bandwidth, latency, and signal integrity issues. To work around these limitations, consider using interface-specific IP cores, optimizing the interface's configuration, and using signal conditioning circuits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCVH1542-2MSEVSVA3697 Overview

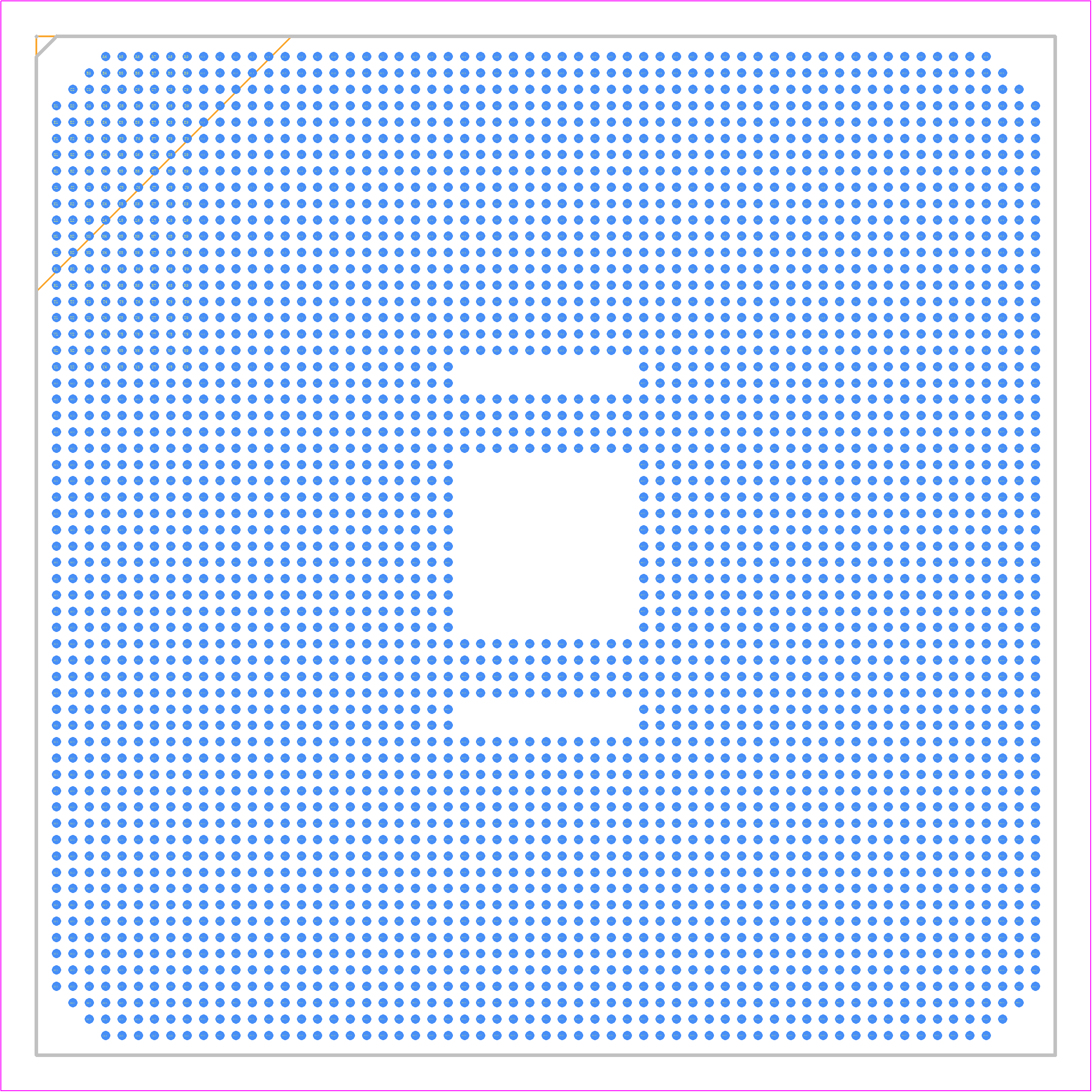

Use the download button to access the XCVH1542-2MSEVSVA3697 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCVH1,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
