XCZU11EG-1FFVF1517I - AMD

Description: IC FPGA 464 I/O 1517FCBGA

Download XCZU11EG-1FFVF1517I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

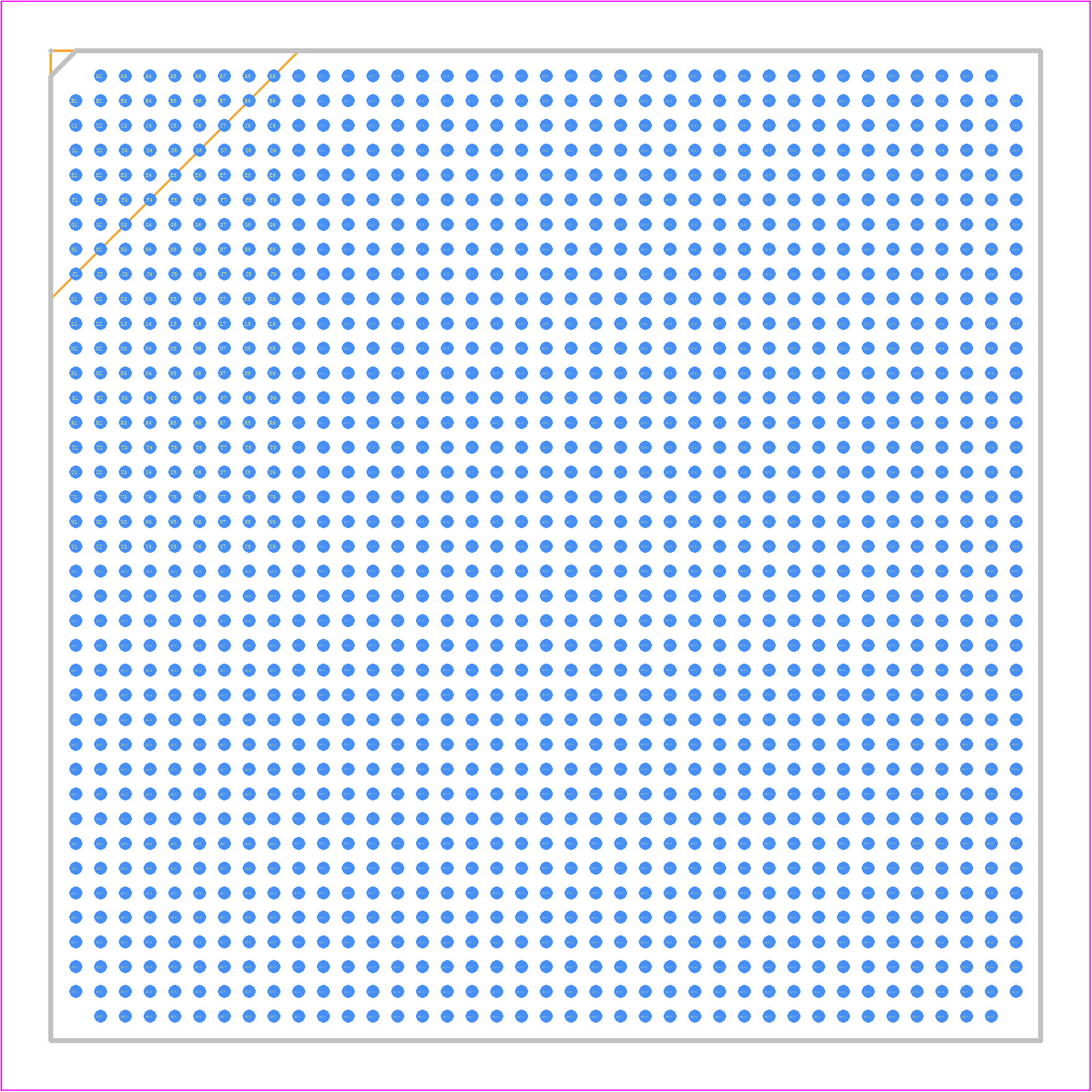

XCZU11EG-1FFVF1517I - AMD PCB footprint - BGA - BGA - FFVF1517
click to zoom
3D Models
XCZU11EG-1FFVF1517I - AMD  - 3D model - BGA - FFVF1517
click to zoom

XCZU11EG-1FFVF1517I Details

  • Manufacturer Part Number:

    XCZU11EG-1FFVF1517I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-1517

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    18

  • JESD-30 Code:

    S-PBGA-B1517

  • Length:

    40 mm

  • Moisture Sensitivity Level:

    4

  • Number of CLBs:

    37320

  • Number of Inputs:

    464

  • Number of Logic Cells:

    653100

  • Number of Outputs:

    464

  • Number of Terminals:

    1517

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    37320 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Packing Method:

    TRAY

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    3.51 mm

  • Supply Voltage-Max:

    0.892 V

  • Supply Voltage-Min:

    0.808 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    40 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCZU11EG-1FFVF1517I Overview

Use the download button to access the XCZU11EG-1FFVF1517I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU1, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About AMD

AMD develops processors, graphics devices, accelerators, and adaptive computing platforms for data centers, embedded systems, PCs, and gaming. Its portfolio includes EPYC server processors, Ryzen processors, Radeon graphics, Instinct accelerators, and adaptive system-on-chip (SoC), FPGA, and system-on-module products. These platforms support general-purpose computing, graphics, AI, and application-specific processing.
