Description:Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ System On Chip (SOC) IC Zynq® UltraScale+™ MPSoC CG 500MHz, 1.2GHz 484-FCBGA (19x19)
AMD provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption based on design parameters. Additionally, implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
The XCZU1CG-1SBVA484I has a maximum junction temperature of 100°C. Ensure proper thermal management by using a heat sink, thermal interface material, and following the thermal design guidelines in the UG583 document.
Implement security measures such as bitstream encryption, secure boot, and authentication using the AMD Secure Boot and Authentication (SBA) feature. Additionally, use secure protocols for communication and data transfer.
AMD provides the Vivado Design Suite, which includes tools for design entry, synthesis, implementation, and verification. Additionally, the Xilinx Software Development Kit (SDK) provides a comprehensive development environment for software development.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCZU1CG-1SBVA484I Overview

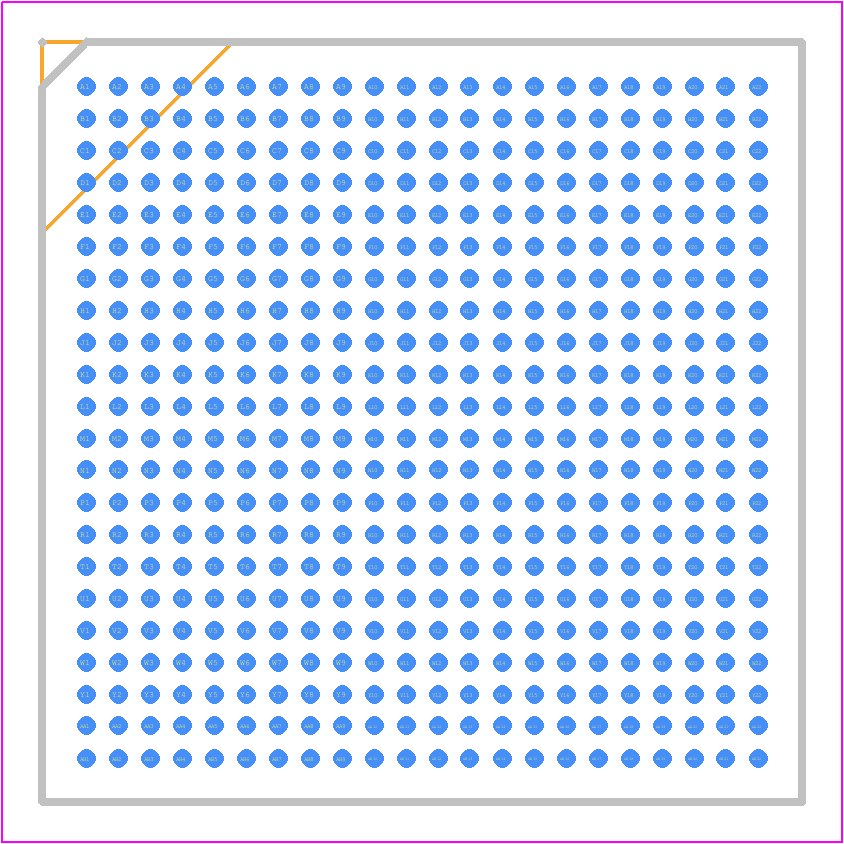

Use the download button to access the XCZU1CG-1SBVA484I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCZU1,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
