XDPP1100Q024XUMA1 - Infineon

Description: Buck, Boost, Buck-Boost, Full-Bridge, Half-Bridge Regulator Positive Output Step-Up/Step-Down PMBus DC-DC Controller IC PG-VQFN-24-20

Download XDPP1100Q024XUMA1 Model

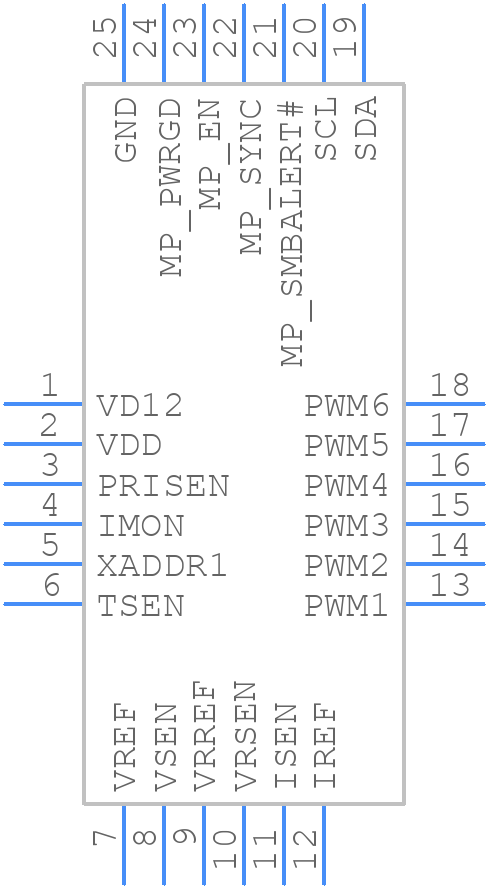

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XDPP1100Q024XUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4 – 24pin
click to zoom
3D Models
XDPP1100Q024XUMA1 - Infineon  - 3D model - Quad Flat No-Lead - QFN 4x4 – 24pin
click to zoom

XDPP1100Q024XUMA1 Details

  • Manufacturer Part Number:

    XDPP1100Q024XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    VQFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.63 V

  • Input Voltage-Min:

    2.97 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    16.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

XDPP1100Q024XUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a reference design and layout guidelines in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Infineon recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The capacitance value should be chosen based on the required ripple current and voltage ripple.
  • The XDPP1100Q024XUMA1 can tolerate a maximum voltage deviation of ±10% on the input pins. Exceeding this limit may affect the device's performance, reliability, or even cause damage.
  • Infineon recommends using external OVP and UVP circuits to protect the device from voltage transients and faults. The OVP threshold should be set to around 1.1 times the maximum input voltage, and the UVP threshold should be set to around 0.9 times the minimum input voltage.
  • Infineon recommends following the JEDEC J-STD-020D.1 standard for soldering the XDPP1100Q024XUMA1. The recommended soldering profile includes a peak temperature of 260°C, a dwell time above 217°C of 60-90 seconds, and a cooling rate of 3-6°C/s.
