XDPP1100Q040XUMA1 - Infineon

Description: Switching Controllers DCDC CONTROLLER

Download XDPP1100Q040XUMA1 Model

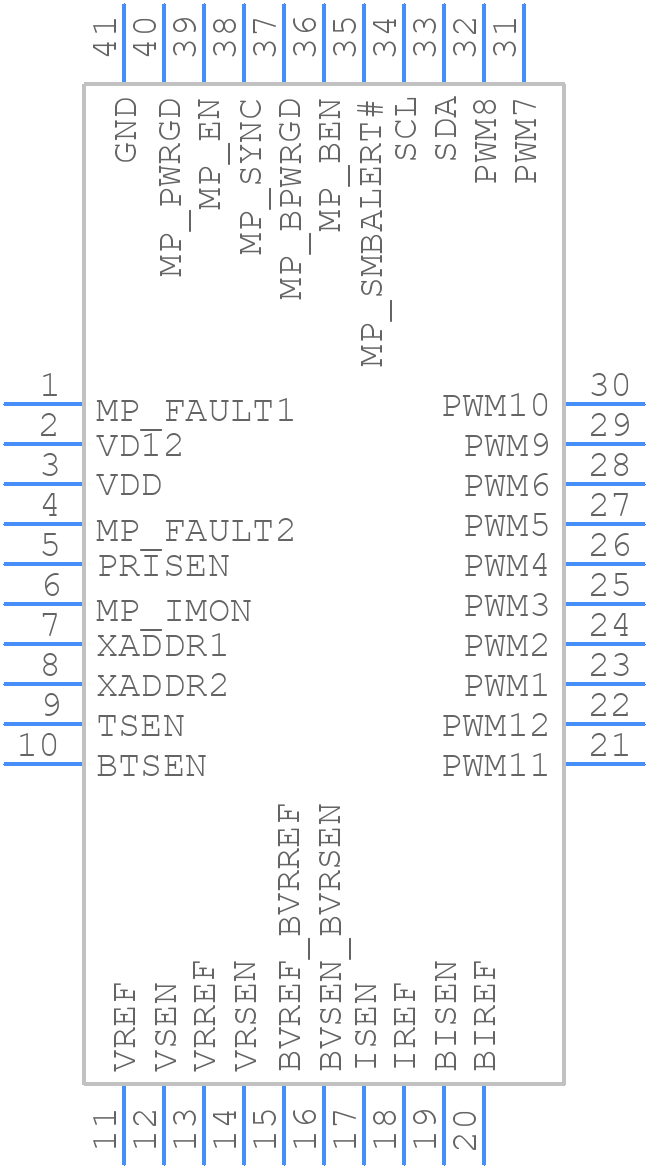

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XDPP1100Q040XUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-pin QFN (6 × 6 × 0.5 mm)....
click to zoom
3D Models
XDPP1100Q040XUMA1 - Infineon  - 3D model - Quad Flat No-Lead - 40-pin QFN (6 × 6 × 0.5 mm)....
click to zoom

XDPP1100Q040XUMA1 Details

  • Manufacturer Part Number:

    XDPP1100Q040XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.63 V

  • Input Voltage-Min:

    2.97 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    16.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

XDPP1100Q040XUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a reference design and layout guidelines in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Infineon recommends using capacitors with low ESR and high ripple current capability. A good starting point is to use capacitors with a voltage rating of 1.5 to 2 times the maximum input voltage and a capacitance value of 10 to 22 μF.
  • The XDPP1100Q040XUMA1 can tolerate a maximum voltage deviation of ±10% on the input pins. Exceeding this limit may affect the device's performance, reliability, or even cause damage.
  • To ensure EMC, follow Infineon's guidelines for PCB layout, component selection, and shielding. Additionally, use a common-mode choke and EMI filters on the input and output lines, and consider using a metal shield or enclosure for the device.
  • The recommended operating temperature range for the XDPP1100Q040XUMA1 is -40°C to +125°C. However, the device can operate up to +150°C for short periods during startup or fault conditions.
