XE216-512-TQ128-C20 - XMOS

XE216-512-TQ128-C20 Details

• Manufacturer Part Number:

  XE216-512-TQ128-C20

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

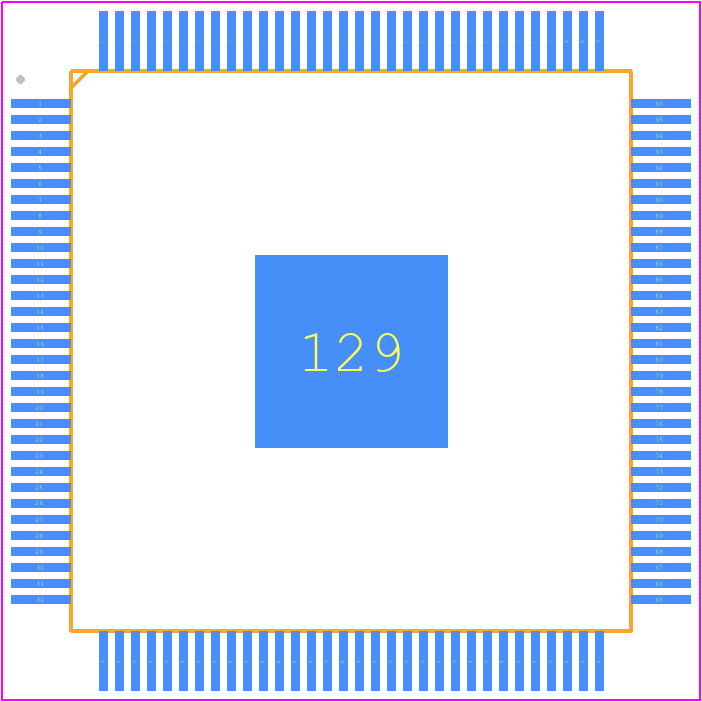

• Package Description:

  TQFP-128

• HTS Code:

  8542.31.00.25

• Manufacturer:

  XMOS Ltd

• Has ADC:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  XE216

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G128

• Length:

  14 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  81

• Number of Terminals:

  128

• Number of Timers:

  20

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP128,.63SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• RAM (bytes):

  524288

• ROM (words):

  16384

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  700 mA

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
