XEF232-1024-FB374-I40 - XMOS

Description: kvl

Download XEF232-1024-FB374-I40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XEF232-1024-FB374-I40 - XMOS - PCB symbol
click to zoom
PCB Footprints

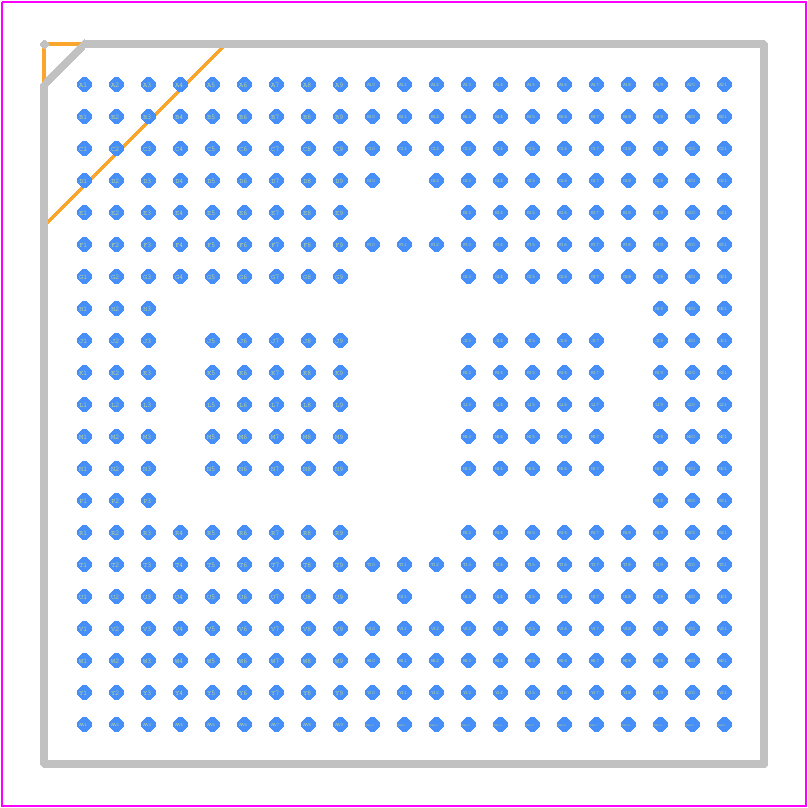

XEF232-1024-FB374-I40 - XMOS PCB footprint - BGA - BGA - XEF232-1024-FB374-I40
click to zoom
3D Models
XEF232-1024-FB374-I40 - XMOS - 3D model - BGA - XEF232-1024-FB374-I40
click to zoom

XEF232-1024-FB374-I40 Details

  • Manufacturer Part Number:

    XEF232-1024-FB374-I40

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    FBGA-374

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    XMOS Ltd

  • Has ADC:

    NO

  • Additional Feature:

    Speed Grade 2000 MIPS

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    XEF232

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PBGA-B374

  • Length:

    18 mm

  • Low Power Mode:

    YES

  • Number of I/O Lines:

    176

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    374

  • Number of Timers:

    40

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA374,21X21,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    1048576

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.36 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    1400 mA

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    18 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XEF232-1024-FB374-I40 Frequently Asked Questions (FAQs)

  • XMOS provides a reference design and layout guidelines in their application notes and development kits. It's recommended to follow these guidelines to ensure optimal performance, signal integrity, and thermal management.
  • XMOS provides a boot loader API and documentation in their software development kit (SDK). Engineers can use this API to create a custom boot loader that meets their specific requirements. Additionally, XMOS offers a boot loader development guide that provides step-by-step instructions.
  • The XEF232 is rated for industrial temperature range, which is -40°C to +85°C. However, it's essential to ensure proper thermal management and heat dissipation to maintain reliable operation within this range.
  • While XMOS provides their own development environment, xTIMEcomposer, the XEF232 can be used with third-party IDEs and development environments. However, engineers may need to create their own project templates, configure the toolchain, and write custom code to interface with the XEF232.
  • XMOS provides a USB debugging tool and documentation in their SDK. Engineers can use this tool to debug and troubleshoot USB-related issues. Additionally, XMOS offers a USB implementation guide that provides detailed information on USB protocol, device configuration, and troubleshooting techniques.
