XF2B-3145-31A - OMRON Electronics

Description: ROTARY BACKLOCK CONN, FPC, R/A, 31POS

Download XF2B-3145-31A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

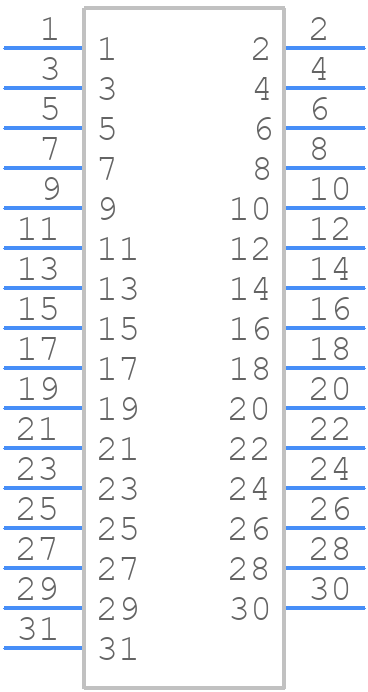

XF2B-3145-31A - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints
XF2B-3145-31A - OMRON Electronics PCB footprint - Other - Other - XF2B-3145-31A-2
click to zoom
3D Models
XF2B-3145-31A - OMRON Electronics - 3D model - Other - XF2B-3145-31A-2
click to zoom

XF2B-3145-31A Details

  • Manufacturer Part Number:

    XF2B-3145-31A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    STAGGERED CONFIGURATION

  • Body Breadth:

    0.047 inch

  • Body Depth:

    0.205 inch

  • Body Length:

    0.441 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD (6) OVER NICKEL (79)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    NATURAL

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Rated Current (Signal):

    0.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    31

  • UL Flammability Code:

    94V-0

XF2B-3145-31A Frequently Asked Questions (FAQs)

  • Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
  • The XF2B-3145-31A has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Omron provides thermal resistance and power dissipation data in the datasheet to help with thermal design.
  • Omron recommends using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds to 1 minute. It's essential to follow the recommended soldering profile to prevent damage to the device.
  • The XF2B-3145-31A is designed to withstand moderate vibrations, but it's essential to evaluate the device's performance in your specific application. Omron provides vibration testing data in the datasheet, and you may need to perform additional testing to ensure the device meets your requirements.
  • Omron provides troubleshooting guides and application notes that can help identify and resolve common issues. It's also recommended to consult with Omron's technical support team or a qualified engineer with experience in similar applications.
