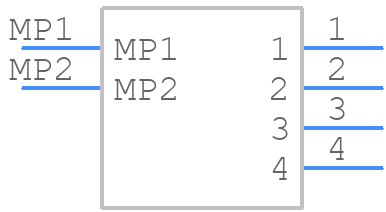

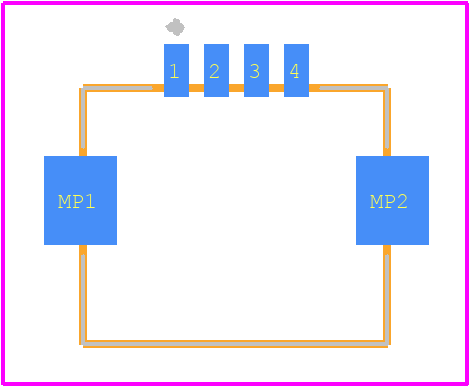

XF3M(1)-1015-1B - OMRON Electronics

XF3M(1)-1015-1B Details

• Manufacturer Part Number:

  XF3M(1)-1015-1B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• Factory Lead Time:

  20 Weeks, 3 Days

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  7.89

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.079 inch

• Body Depth:

  0.224 inch

• Body Length:

  0.535 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  50 mΩ

• Contact Style:

  DUAL PRONG

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  20 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.039 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.9906 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  10
