XF3M(1)-2615-1B - OMRON Electronics

Description: FPC/FFC Connector, Dual-sided Contact Models, 1.0 mm Pitch, 26 Contacts, Gold flash plating

Download XF3M(1)-2615-1B Model

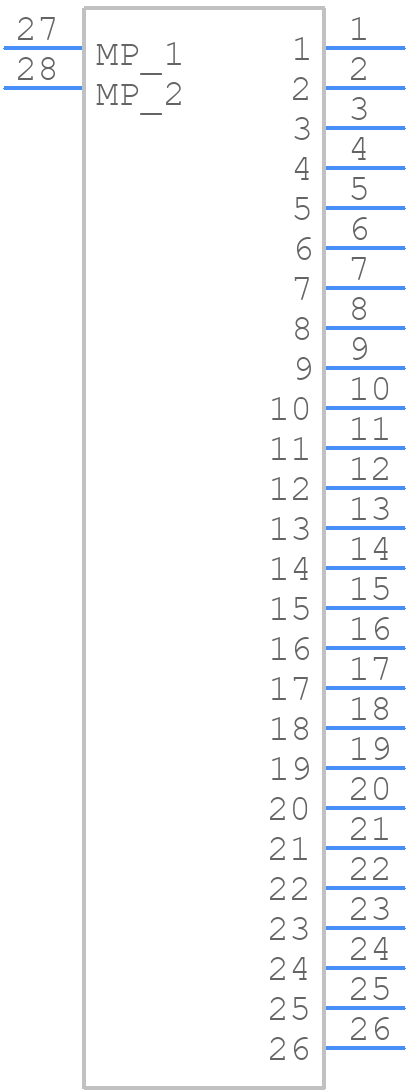

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

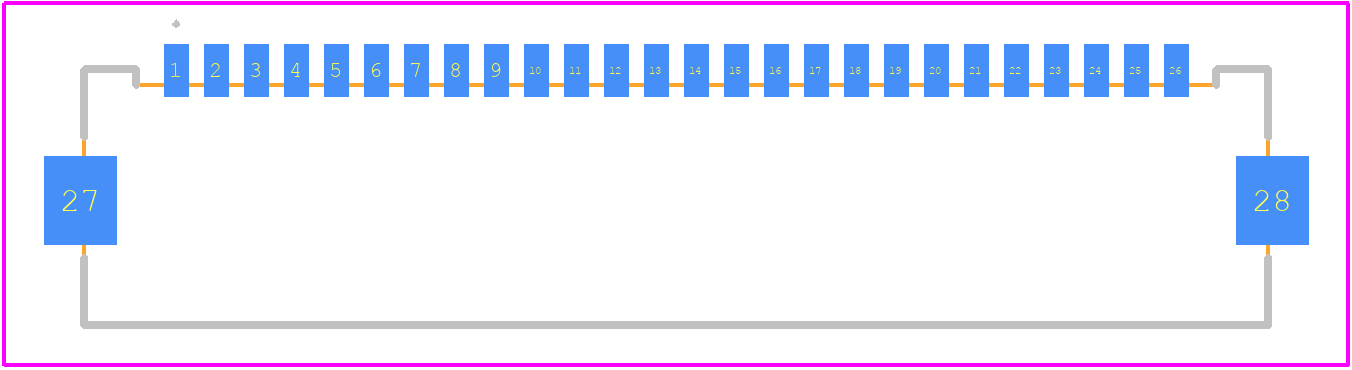

XF3M(1)-2615-1B - OMRON Electronics PCB footprint - Other - Other - XF3M(1)-2615-1B-2
click to zoom
3D Models
XF3M(1)-2615-1B - OMRON Electronics  - 3D model - Other - XF3M(1)-2615-1B-2
click to zoom

XF3M(1)-2615-1B Details

  • Manufacturer Part Number:

    XF3M(1)-2615-1B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.224 inch

  • Body Length:

    1.165 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    DUAL PRONG

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.9906 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26
