XF3M-2515-1B - OMRON Electronics

Description: 25 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Download XF3M-2515-1B Model

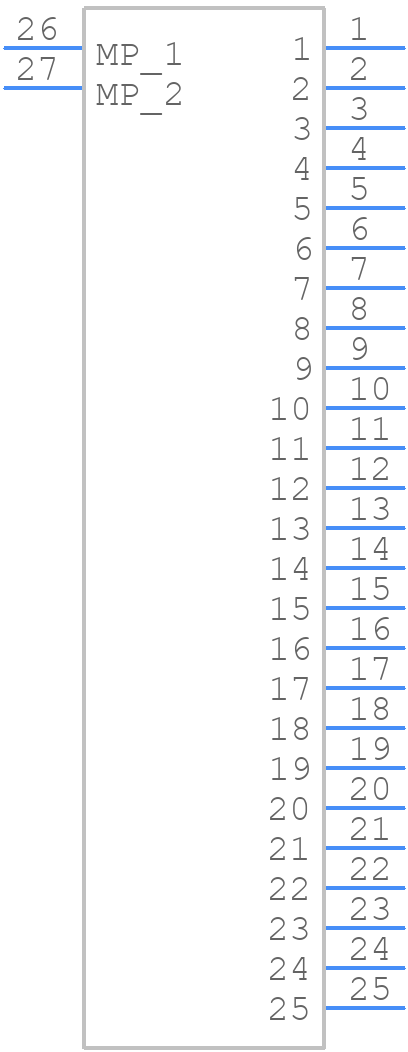

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XF3M-2515-1B - OMRON Electronics PCB footprint - Other - Other - XF3M-2515-1B-4
click to zoom

XF3M-2515-1B Details

  • Manufacturer Part Number:

    XF3M-2515-1B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    7.77

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.224 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    25

XF3M-2515-1B Frequently Asked Questions (FAQs)

  • Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
  • The XF3M-2515-1B has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink if necessary, and follow Omron's guidelines for thermal design and layout. Additionally, consider using thermal interface materials and thermal vias on the PCB.
  • The XF3M-2515-1B is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, such as wrist straps and mats. Follow Omron's ESD handling guidelines and ensure that your production line and storage facilities are ESD-safe.
  • While the XF3M-2515-1B is designed to be robust, it's essential to evaluate its performance in high-vibration or high-shock environments. Omron provides guidelines for vibration and shock testing. Consult with Omron's application engineers or perform your own testing to ensure the device meets your specific requirements.
  • To troubleshoot issues with the XF3M-2515-1B, follow Omron's troubleshooting guidelines and application notes. Check for proper PCB layout, soldering, and component selection. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult with Omron's technical support or a qualified engineer if needed.
