Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
The XF3M-2615-1B has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Omron provides thermal resistance and power dissipation data in the datasheet to help with thermal design.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowable voltage for the input pins is typically 1.5 to 2 times the recommended voltage. However, it's recommended to consult Omron's application notes or contact their support team for specific guidance.
To ensure the XF3M-2615-1B's reliability and lifespan, it's essential to follow proper storage, handling, and soldering procedures. Additionally, operating the device within the recommended specifications, providing adequate thermal management, and using suitable PCB materials can help extend its lifespan.
Yes, the XF3M-2615-1B is a sensitive device and requires proper ESD protection measures during handling, storage, and assembly. Omron recommends following standard ESD precautions, such as using ESD-safe materials, wrist straps, and mats, to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XF3M-2615-1B Overview

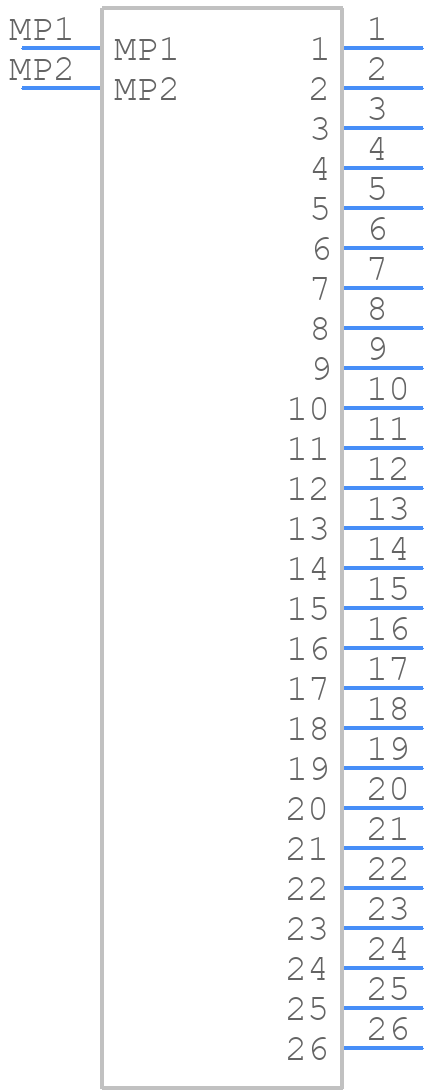

Use the download button to access the XF3M-2615-1B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XF3M-,
or try a keyword search, such as Headers and Edge Type Connectors
