XF3M-3615-1B - OMRON Electronics

Description: FFC & FPC Connectors FPC Connector

Download XF3M-3615-1B Model

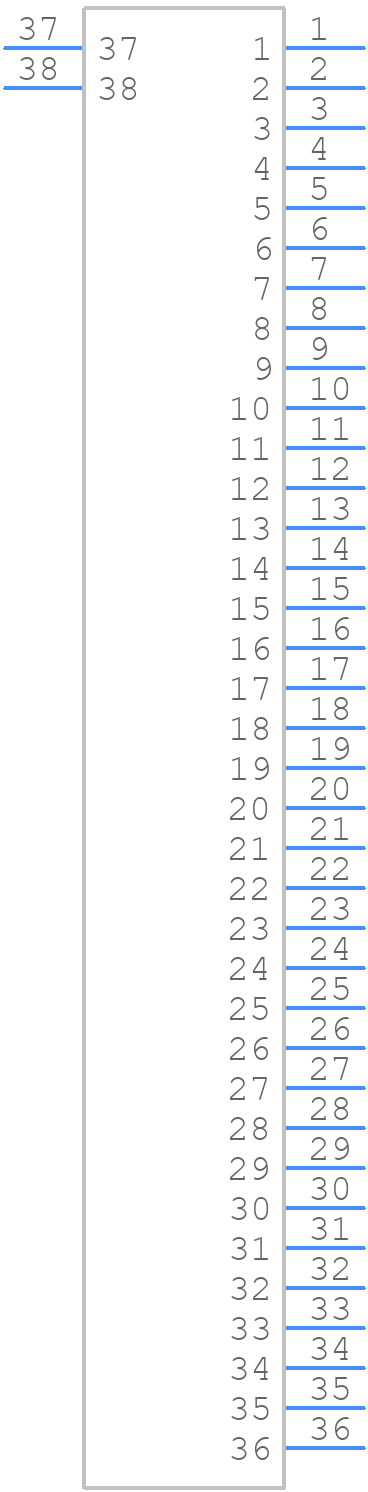

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XF3M-3615-1B - OMRON Electronics PCB footprint - Other - Other - XF3M-3615-1B
click to zoom
3D Models
XF3M-3615-1B - OMRON Electronics  - 3D model - Other - XF3M-3615-1B
click to zoom

XF3M-3615-1B Details

  • Manufacturer Part Number:

    XF3M-3615-1B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.224 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    36

XF3M-3615-1B Frequently Asked Questions (FAQs)

  • Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper mounting, thermal management, and signal integrity.
  • Omron recommends using a heat sink or thermal pad to dissipate heat generated by the device. The thermal resistance of the heat sink or thermal pad should be considered to ensure the device operates within its specified temperature range.
  • While the datasheet specifies the recommended operating voltage, the maximum allowable voltage is typically 1.5 to 2 times the recommended voltage. However, it's essential to consult with Omron's application engineers or support team to determine the exact maximum allowable voltage for specific use cases.
  • Omron's XF3M-3615-1B is designed to withstand certain levels of vibration and shock. However, it's crucial to consult with Omron's application engineers or support team to determine the device's suitability for specific environmental conditions and to discuss potential customization or special packaging options.
  • Omron provides guidelines for EMC in their application notes and design guides. It's essential to follow these guidelines, which include proper PCB layout, shielding, and filtering, to ensure the device meets EMC requirements.
