The recommended PCB layout for XFGIB100 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
To troubleshoot issues with the XFGIB100's clock signal, check the clock frequency, amplitude, and jitter using an oscilloscope. Ensure that the clock signal is within the specified range and that the clock input is properly terminated. Also, verify that the clock signal is not affected by noise or interference from other components on the board.
The maximum operating temperature range for XFGIB100 is -40°C to 125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
XFGIB100 is not designed to be radiation-hardened. If you need a radiation-hardened device, you should consider using a different component that is specifically designed for such applications.
To ensure EMC with XFGIB100, follow proper PCB design and layout guidelines, use shielding and filtering techniques, and ensure that the device is properly grounded. Additionally, perform EMC testing and certification according to relevant industry standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XFGIB100 Overview

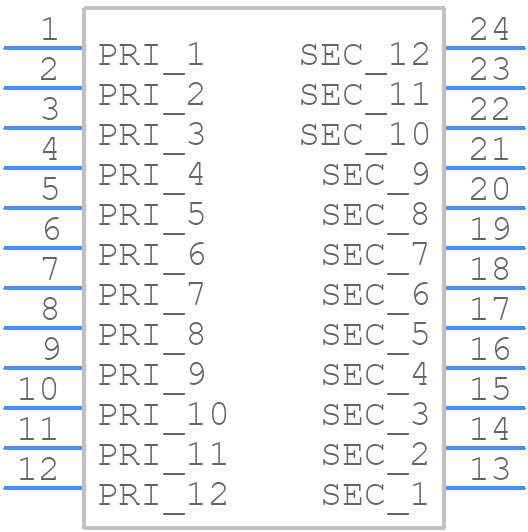

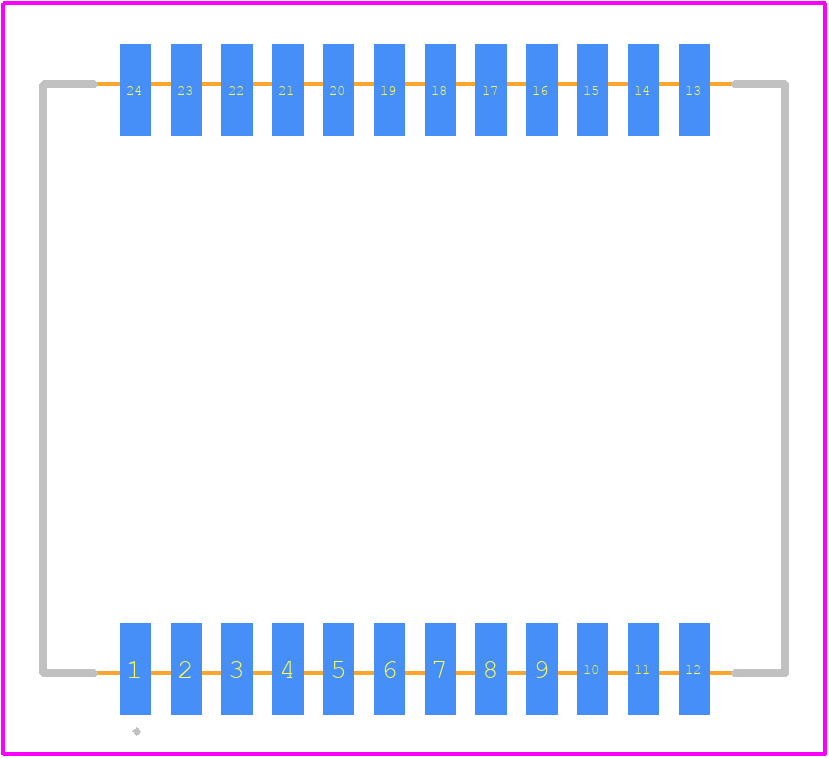

Use the download button to access the XFGIB100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XFGIB,
or try a keyword search, such as Pulse/Datacom Transformers
