XG2A-3001 Frequently Asked Questions (FAQs)

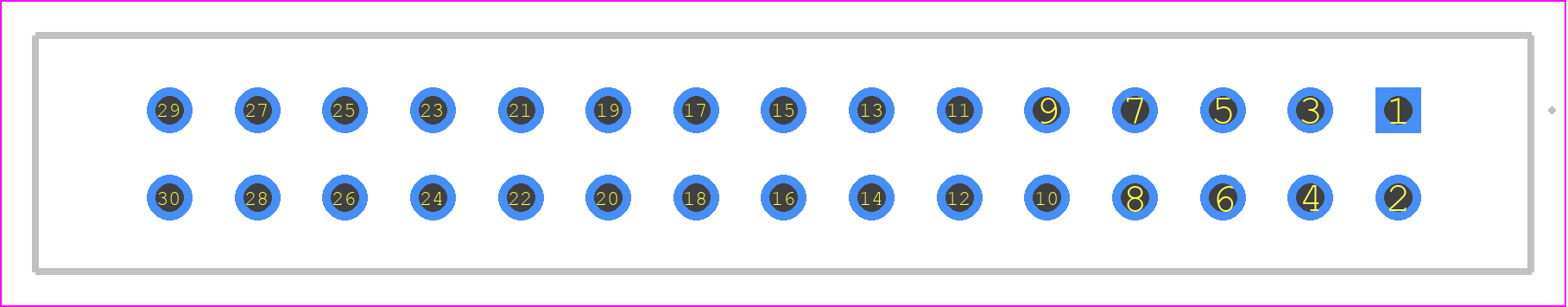

• What is the recommended PCB layout and thermal management for the XG2A-3001?
  Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
• How do I ensure reliable communication with the XG2A-3001 over the SPI interface?
  To ensure reliable communication, Omron recommends using a clock frequency of 1 MHz or less, and implementing a delay of at least 100 ns between consecutive SPI transactions. Additionally, ensure that the SPI bus is properly terminated and that the master device is configured to handle the XG2A-3001's slave mode.
• What is the maximum operating temperature range for the XG2A-3001?
  The XG2A-3001 is rated for operation from -40°C to 125°C, but Omron recommends derating the device's output current and voltage to ensure reliable operation above 85°C.
• How do I handle the XG2A-3001's power-on reset (POR) and brown-out reset (BOR) functions?
  The XG2A-3001's POR and BOR functions are designed to ensure the device resets properly during power-up and brown-out conditions. Omron recommends using an external capacitor to filter the power supply and ensure a clean reset signal. Additionally, the device's reset pin can be connected to a microcontroller or other logic to handle reset events.
• What is the recommended ESD protection for the XG2A-3001?
  Omron recommends using a TVS (transient voltage suppressor) diode or a dedicated ESD protection IC to protect the XG2A-3001 from electrostatic discharge. The device's I/O pins should be connected to a ground plane or a dedicated ESD protection network.
