XG4A-1073 - OMRON Electronics

XG4A-1073 Details

• Manufacturer Part Number:

  XG4A-1073

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  9.1

• Additional Feature:

  STANDARD: MIL-C-83503

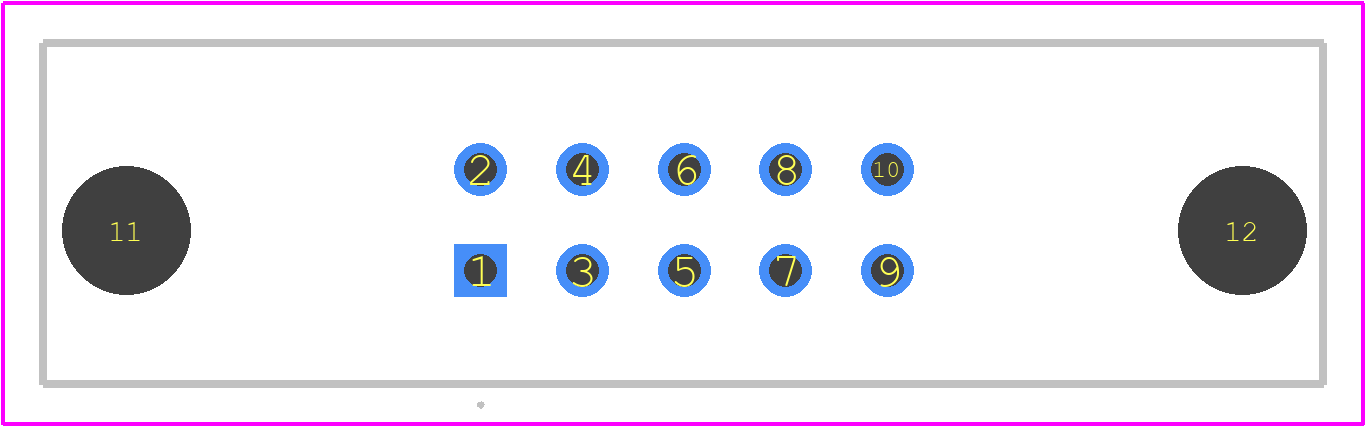

• Board Mounting Option:

  HOLE .126

• Body Breadth:

  0.335 inch

• Body Depth:

  0.669 inch

• Body Length:

  1.26 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (6)

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  1.96 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  6u inch

• Polarization Key:

  POLARIZED KEY

• Rated Current (Signal):

  3 A

• Reference Standard:

  MIL; UL

• Terminal Length:

  0.126 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  10

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.39 N
