Omron recommends a 4-layer PCB with a solid ground plane, and thermal vias under the IC to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
To ensure EMC, Omron recommends following proper PCB design guidelines, using a metal shield or enclosure, and implementing filtering and shielding on input/output lines. Additionally, the device should be placed at least 10 mm away from other components to minimize electromagnetic interference.
The XG4C-6431 can operate within a temperature range of -40°C to 125°C, but Omron recommends operating within the range of -20°C to 85°C for optimal performance and reliability.
The XG4C-6431 has an internal POR and BOD circuitry. To handle these features, ensure that the power supply voltage rises slowly (typically 10 ms or more) during power-on, and that the voltage does not drop below the BOD threshold (typically 2.2 V) during operation.
Omron recommends a soldering temperature of 260°C (peak temperature) with a soldering time of 10 seconds or less. A reflow soldering profile with a ramp-up rate of 1-3°C/s and a cooling rate of 1-3°C/s is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XG4C-6431 Overview

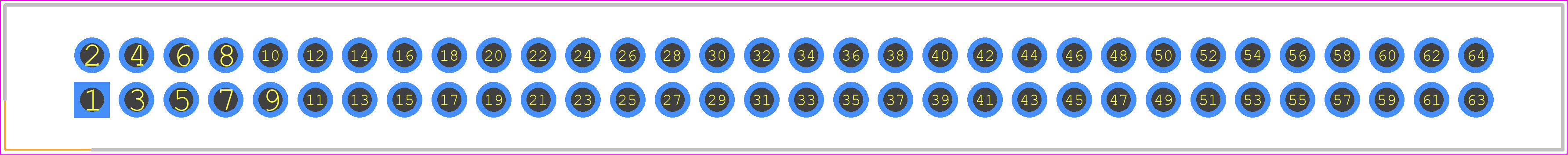

Use the download button to access the XG4C-6431 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XG4C-,
or try a keyword search, such as Headers and Edge Type Connectors
