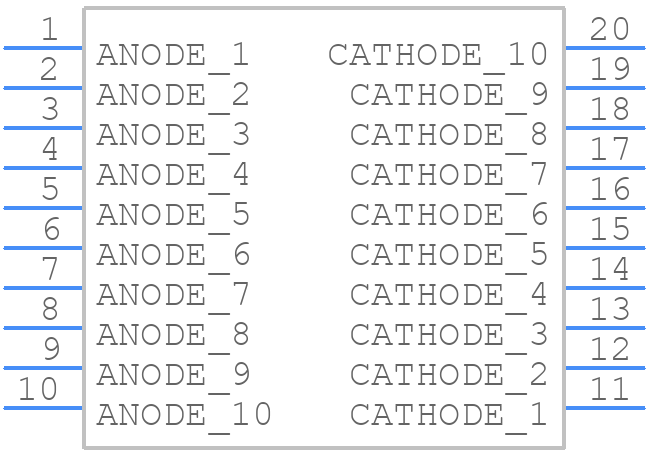

Symbol

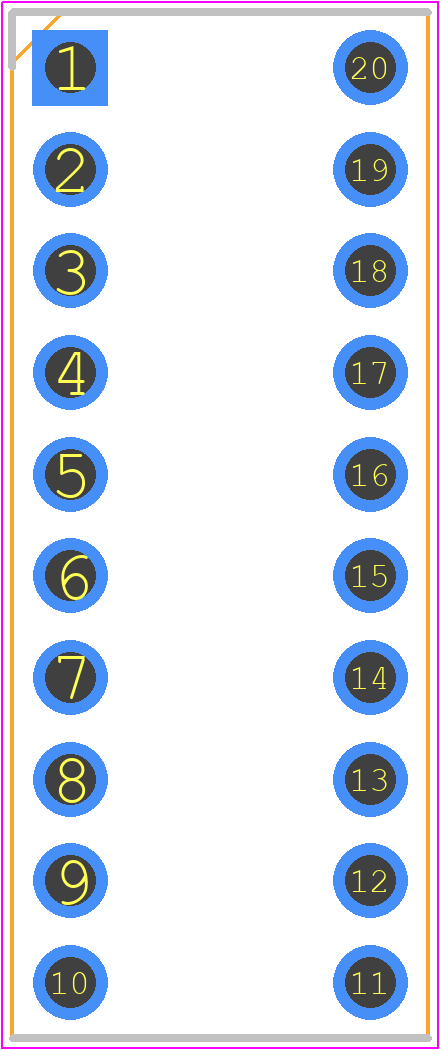

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XGCBDX10D
- Part Number XGCBDX10D
- Manufacturer SunLED
- Pin Count 20
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - XGCBDX10D
- Released Date Jul 19, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XGCBDX10D Details
-
Manufacturer Part Number:
XGCBDX10D
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
SunLED Group
-
YTEOL:
6
-
Color:
BLUE
-
Configuration:
SEPARATE, 10 ELEMENTS
-
Forward Current-Max:
0.03 A
XGCBDX10D Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for XGCBDX10D is -40°C to 85°C, but it's essential to note that the storage temperature range is -40°C to 100°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a soldering flux to the leads. Avoid applying excessive force or bending the leads during the soldering process.
-
The typical forward voltage drop of the XGCBDX10D is around 2.0V to 2.5V, but this value can vary depending on the operating current and temperature.
-
Yes, the XGCBDX10D is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and UV radiation.
-
The maximum allowable current for the XGCBDX10D is 30mA, but it's recommended to operate the device at a current below 20mA to ensure reliable operation and extend its lifespan.
