XGMRX5D - SunLED

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, DIP Red (x 5) 1.8V 30mA Rectangle with Flat Top 5.00mm x 1.60mm Through Hole

Download XGMRX5D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XGMRX5D model

Email notifications will be applied after download.

Send part feedback

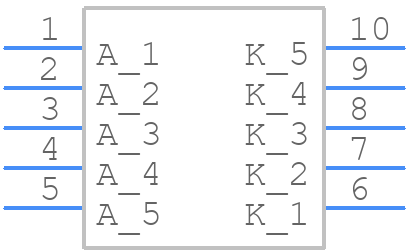

Symbol

XGMRX5D - SunLED - PCB symbol

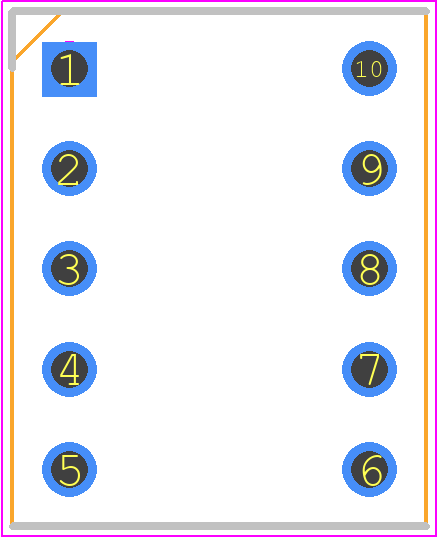

PCB Footprints

XGMRX5D - SunLED PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for XGMRX5D
Part Number XGMRX5D
Manufacturer SunLED
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 10-Pin DIP
Released Date May 29, 2023
Last Modified Date May 30, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

XGMRX5D Details

Manufacturer Part Number:
XGMRX5D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-10
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
SunLED Group
YTEOL:
6
Color:
RED
Configuration:
SEPARATE, 5 ELEMENTS
Forward Current-Max:
0.03 A
Luminous Intensity-Nom:
27.374 mcd
Mounting Feature:
RADIAL MOUNT
Number of Functions:
5
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Overall Height:
8 mm
Packing Method:
TUBE
Peak Wavelength:
660 nm
Shape:
RECTANGULAR
Size:
5 mm
Surface Mount:
NO
Terminal Pitch:
7.5 mm

XGMRX5D Frequently Asked Questions (FAQs)

The recommended storage temperature for XGMRX5D is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, XGMRX5D is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture and UV damage.
The maximum soldering temperature for XGMRX5D is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, XGMRX5D is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
The typical junction temperature of XGMRX5D is 125°C, but it can operate up to 150°C with derating.
