Symbol

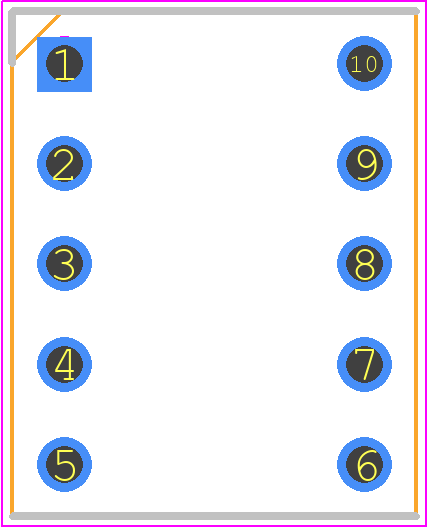

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XGUGX5D
- Part Number XGUGX5D
- Manufacturer SunLED
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - XGUGX5D
- Released Date Jan 8, 2019
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
XGUGX5D Details
-
Manufacturer Part Number:
XGUGX5D
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-10
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
SunLED Group
-
YTEOL:
6
-
Color:
GREEN
-
Configuration:
SEPARATE, 5 ELEMENTS
XGUGX5D Frequently Asked Questions (FAQs)
-
The recommended storage temperature for XGUGX5D is -20°C to 30°C (-4°F to 86°F) to ensure the longevity of the LED.
-
Yes, XGUGX5D can be used in outdoor applications, but it's recommended to use a suitable enclosure to protect the LED from environmental factors such as moisture, dust, and extreme temperatures.
-
The maximum soldering temperature for XGUGX5D is 260°C (500°F) for a maximum of 3 seconds. Exceeding this temperature or time may damage the LED.
-
Yes, XGUGX5D is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliable connections.
-
The recommended operating temperature range for XGUGX5D is -20°C to 80°C (-4°F to 176°F). Operating outside this range may affect the LED's performance and lifespan.
Trust Checks
Community Provided
System Verified
Community Approved
XGUGX5D Overview
Use the download button to access the XGUGX5D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XGUGX,
or try a keyword search, such as Visible LEDs
