XGURUGX10D footprint, schematic symbol and 3D model by SunLED

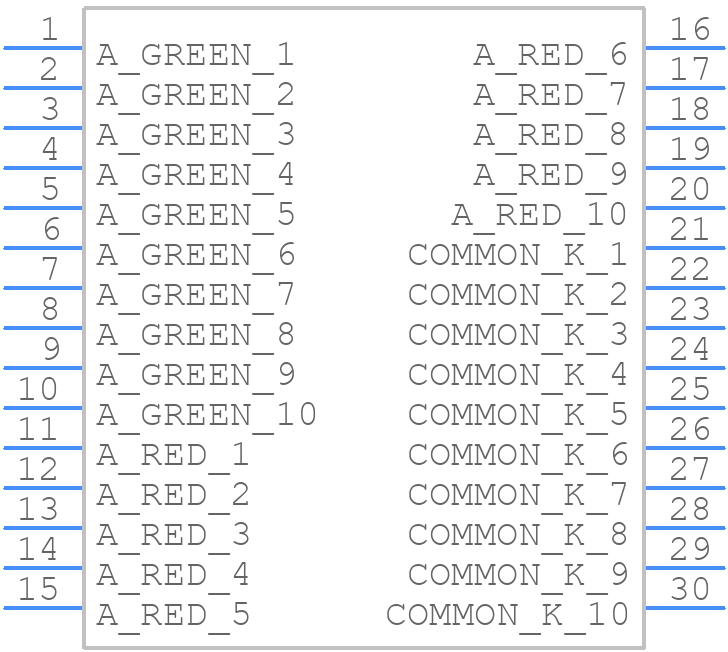

Symbol

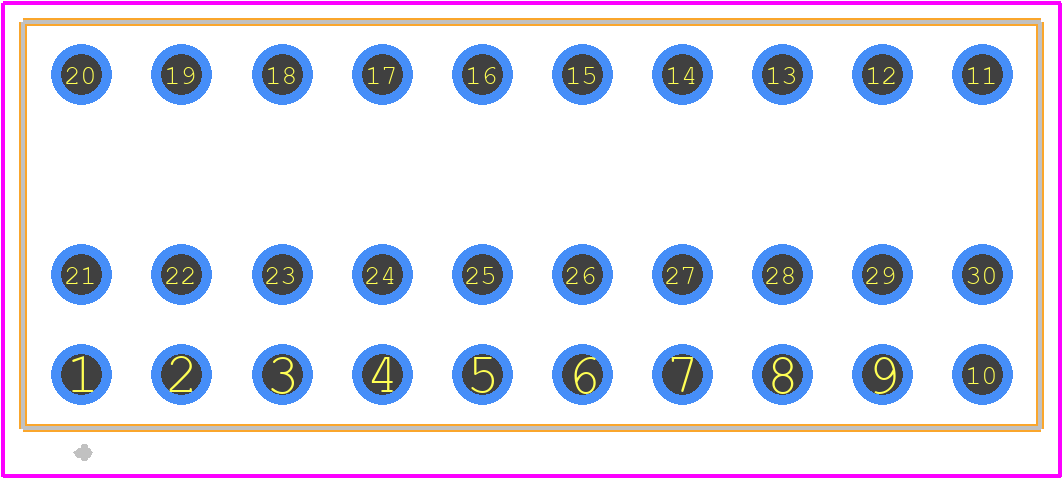

PCB Footprints

3D Models

XGURUGX10D Details

The recommended storage temperature for XGURUGX10D is -20°C to 30°C (-4°F to 86°F) to ensure optimal performance and longevity.
Yes, XGURUGX10D is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures to maintain its performance and lifespan.
The maximum soldering temperature for XGURUGX10D is 260°C (500°F) for a maximum of 3 seconds. Exceeding this temperature or time may damage the component.
To prevent electrostatic discharge (ESD) damage, handle XGURUGX10D with anti-static wrist straps, mats, or bags, and ensure all equipment is properly grounded.
The recommended reflow soldering profile for XGURUGX10D is a peak temperature of 240°C (464°F) with a dwell time of 30-60 seconds. Consult the datasheet for a detailed profile.

Expert Contribution

System Verified

Community Approved

Use the download button to access the XGURUGX10D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XGURU, or try a keyword search, such as Visible LEDs
