Part Image

XGZP6897A040KPDPN - CFSensor

Description: PRESSURE SENSOR Wide Ranges: -100kPa…-0.5～ 0～ 0.5…200kPa(show in Routine Pressure Range) ■ Optional 5V or 3.3V Power Supply ■ Differential Pressure(Positive&Vacuum) Type ■ For Non-corrosive Gas or Air ■ Calibrated Amplified Analog Signal(Refer to XGZP6897D for I2C interface) ■ Temp. Compensated: 0℃～ +60℃(32℉ ～ +140℉ ) ■ Direct Application, Low Cost.

Download XGZP6897A040KPDPN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XGZP6897A040KPDPN model

Email notifications will be applied after download.

Send part feedback

Symbol

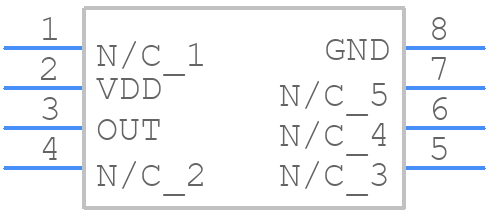

XGZP6897A040KPDPN - CFSensor - PCB symbol

PCB Footprints

XGZP6897A040KPDPN - CFSensor PCB footprint - Other - Other - XGZP6897A040KPDPN-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for XGZP6897A040KPDPN
Part Number XGZP6897A040KPDPN
Manufacturer CFSensor
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - XGZP6897A040KPDPN-3
Released Date Aug 16, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

XGZP6897A040KPDPN Details

Manufacturer Part Number:
XGZP6897A040KPDPN
Manufacturer:
CFSensor

Trust Checks

Community Provided

System Verified

Community Approved

XGZP6897A040KPDPN Overview

Use the download button to access the XGZP6897A040KPDPN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like XGZP6, or try a keyword search, such as Film Capacitors
