XHF-292M+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS HIGH PASS FLTR

Download XHF-292M+ Model

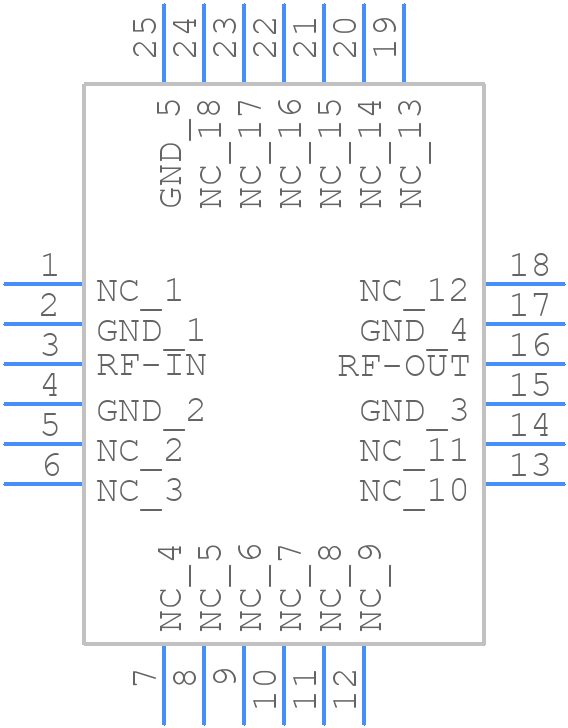

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XHF-292M+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DG1847_2020
click to zoom
3D Models
XHF-292M+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DG1847_2020
click to zoom

XHF-292M+ Details

  • Manufacturer Part Number:

    XHF-292M+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN, 24 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Average Input Power:

    1.5849 W

  • Center or Cutoff Frequency (fo/fc):

    2400 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    1 mm

  • Input Connector:

    SMA FEMALE

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.7 dB

  • Length:

    4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    2

  • Number of Sections-Min:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Connector:

    SMA FEMALE

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7/13 INCH

  • VSWR:

    1.2

  • Width:

    4 mm

XHF-292M+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The XHF-292M+ has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to limit the input power to -10 dBm to prevent damage to the device. Exceeding this limit may cause permanent damage or affect the amplifier's performance.
  • Yes, the XHF-292M+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper operation and minimize unwanted oscillations.
  • The typical noise figure of the XHF-292M+ is around 3.5 dB, but this can vary depending on the specific application, operating frequency, and temperature. It's essential to consult the datasheet and application notes for more detailed information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XHF-292M+ Overview

Use the download button to access the XHF-292M+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XHF-2, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
