XHF-63M+ - Mini-Circuits

Description: Signal Conditioning MMIC FILTER REFLECTIONLESS

Download XHF-63M+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

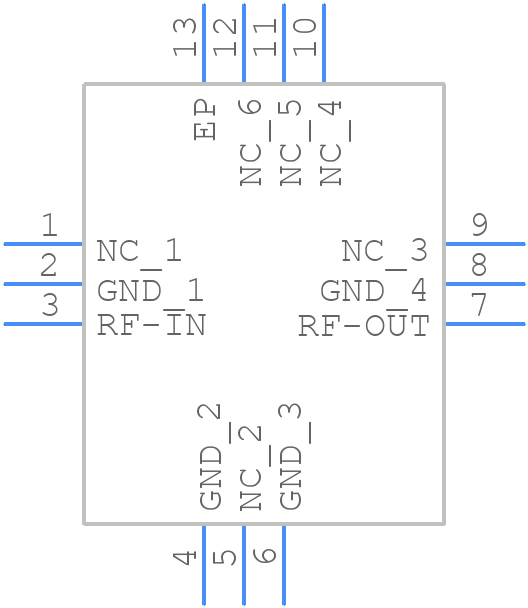

XHF-63M+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XHF-63M+ - Mini-Circuits PCB footprint - Other - Other - XHF-63M+-3
click to zoom
3D Models
XHF-63M+ - Mini-Circuits - 3D model - Other - XHF-63M+-3
click to zoom

XHF-63M+ Details

  • Manufacturer Part Number:

    XHF-63M+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    5000 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.1 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    2

  • Number of Sections-Min:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm

XHF-63M+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The XHF-63M+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to transform the impedance. You can use online impedance matching tools or consult with an RF engineer for assistance.
  • The XHF-63M+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • The XHF-63M+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and ensure proper heat sinking to prevent overheating. Consult with an RF engineer or Mini-Circuits' application notes for guidance on high-temperature operation.
  • To troubleshoot issues, start by checking the power supply, input/output connections, and PCB layout. Use a spectrum analyzer or a vector network analyzer to measure the frequency response and identify any anomalies. Consult Mini-Circuits' application notes and technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XHF-63M+ Overview

Use the download button to access the XHF-63M+ schematic symbol, PCB footprint, and 3D model.
