XHF-652M+ - Mini-Circuits

Description: 11.4GHz Center Frequency High Pass RF Filter (Radio Frequency) 9.6GHz Bandwidth 3dB 12-VQFN Exposed Pad

Download XHF-652M+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

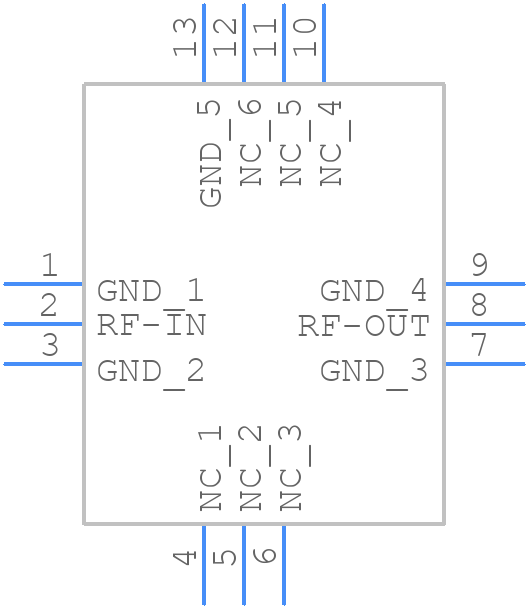

XHF-652M+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XHF-652M+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225-2022
click to zoom
3D Models
XHF-652M+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225-2022
click to zoom

XHF-652M+ Details

  • Manufacturer Part Number:

    XHF-652M+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Average Input Power:

    1.3 W

  • Center or Cutoff Frequency (fo/fc):

    6230 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    2

  • Number of Sections-Min:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.1

  • Width:

    3 mm

XHF-652M+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications. The recommended layout includes a 50-ohm microstrip transmission line, and the footprint should be designed to minimize parasitic inductance and capacitance.
  • The XHF-652M+ can generate significant heat, especially at high frequencies and high power levels. It's crucial to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, consider using a thermal pad or thermal tape to improve heat transfer.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to limit the input power to -10 dBm to -15 dBm to avoid compression and distortion. Exceeding this limit may result in reduced gain, increased distortion, and potentially damage the device.
  • Yes, the XHF-652M+ can be used in a push-pull configuration to achieve higher power output and improved linearity. However, this requires careful design and layout considerations, including proper impedance matching, biasing, and thermal management. Consult Mini-Circuits' application notes and technical support for guidance on push-pull configurations.
  • The XHF-652M+ requires a specific biasing scheme to achieve optimal performance. Mini-Circuits recommends using a voltage-controlled current source to set the bias current. The recommended bias voltage is typically around 5-6 V, and the bias current should be set to around 100-150 mA. Consult the datasheet and application notes for more detailed information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XHF-652M+ Overview

Use the download button to access the XHF-652M+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XHF-6, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
