Part Image

XHF2-1162+ - Mini-Circuits

Description: 20.8GHz Center Frequency High Pass RF Filter (Radio Frequency) 18.4GHz Bandwidth 1.6dB 6-TDFN Exposed Pad

Download XHF2-1162+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

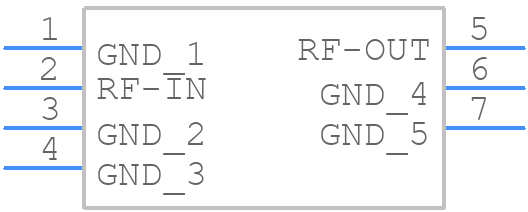

Symbol
XHF2-1162+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XHF2-1162+ - Mini-Circuits PCB footprint - Other - Other - MC1630-1_2024
click to zoom
3D Models
XHF2-1162+ - Mini-Circuits - 3D model - Other - MC1630-1_2024
click to zoom

XHF2-1162+ Details

  • Manufacturer Part Number:

    XHF2-1162+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Average Input Power:

    1.26 W

  • Center or Cutoff Frequency (fo/fc):

    10400 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR:

    1.8

  • Width:

    2 mm

XHF2-1162+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-inductance path to ground for the amplifier's ground pins. A good layout practice is to use a star-ground configuration and to keep the signal traces as short as possible.
  • The XHF2-1162+ requires a bias voltage of 5V and a bias current of 120mA. It's recommended to use a voltage regulator with a low dropout voltage and a high-current capability to ensure stable operation.
  • The XHF2-1162+ can handle an input power of up to +10dBm without damage. However, it's recommended to limit the input power to +5dBm to ensure optimal performance and to prevent compression.
  • The XHF2-1162+ has an input impedance of 50 ohms and an output impedance of 50 ohms. It's recommended to use a conjugate match at the input and output ports to ensure maximum power transfer and optimal performance.
  • The XHF2-1162+ is specified to operate over a temperature range of -40°C to +85°C. However, it's recommended to operate the amplifier within a temperature range of 0°C to +70°C for optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XHF2-1162+ Overview

Use the download button to access the XHF2-1162+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XHF2-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
