XHF2-1352+ - Mini-Circuits

Description: Signal Conditioning MMIC REFLECTIONLESS HPF 50Ω DC to 30 GHz

Download XHF2-1352+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

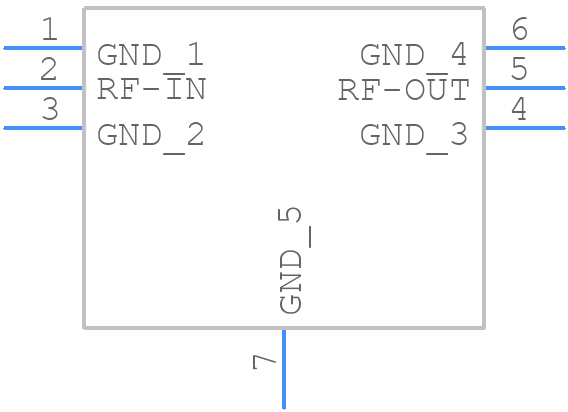

Symbol
XHF2-1352+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XHF2-1352+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630-1
click to zoom
3D Models
XHF2-1352+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1630-1
click to zoom

XHF2-1352+ Details

  • Manufacturer Part Number:

    XHF2-1352+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    12700 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.8

  • Width:

    2 mm

XHF2-1352+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The XHF2-1352+ has a maximum junction temperature of 150°C. To handle thermal characteristics, ensure proper heat sinking, use a thermal interface material, and consider forced air cooling or a heat sink with a thermal conductivity of at least 1 W/m-K.
  • The XHF2-1352+ is designed for 50Ω input and output impedance. For optimal performance, ensure that the input and output impedance of the surrounding circuitry is matched to 50Ω using impedance matching networks or transformers.
  • To minimize EMI and RFI, use proper shielding, grounding, and decoupling techniques. Ensure that the XHF2-1352+ is placed in a shielded enclosure, and use EMI filters or absorbers if necessary. Additionally, follow good PCB design practices, such as separating analog and digital grounds.
  • Mini-Circuits provides reliability data and MTBF estimates in their product documentation. The XHF2-1352+ has a typical MTBF of 100,000 hours at 40°C ambient temperature, calculated according to MIL-HDBK-217F. However, actual reliability may vary depending on operating conditions and usage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

XHF2-1352+ Overview

Use the download button to access the XHF2-1352+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XHF2-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
