XHF2-153+ - Mini-Circuits

Description: Signal Conditioning MMIC REFLECTIONLESS HPF

Download XHF2-153+ Model

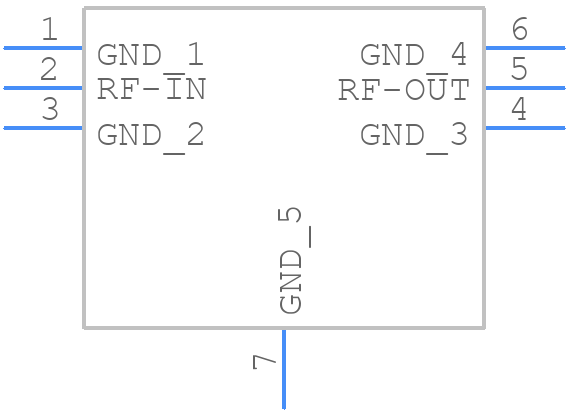

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XHF2-153+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630-1_2022
click to zoom
3D Models
XHF2-153+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1630-1_2022
click to zoom

XHF2-153+ Details

  • Manufacturer Part Number:

    XHF2-153+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Average Input Power:

    1.26 W

  • Center or Cutoff Frequency (fo/fc):

    14200 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.6

  • Width:

    2 mm

XHF2-153+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the XHF2-153+ is -40°C to +85°C.
  • Yes, the XHF2-153+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical current draw of the XHF2-153+ is 30mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the XHF2-153+ is suitable for use in high-reliability and military applications, as it is designed to meet the requirements of these industries.
  • The recommended PCB layout and footprint for the XHF2-153+ can be found in the datasheet or by contacting Mini-Circuits directly. It is important to follow the recommended layout to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XHF2-153+ Overview

Use the download button to access the XHF2-153+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XHF2-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
