MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a thermal plane on the PCB.
The XL1010-QT-0G0T requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
MACOM recommends using a conjugate match at the input and output of the device to achieve optimal performance. A 50Ω system is recommended, and the device should be matched to the system impedance using a π-network or a T-network.
The XL1010-QT-0G0T is sensitive to ESD. Handle the device in an ESD-controlled environment, and use ESD protection devices such as TVS diodes or ESD suppressors to prevent damage.
Store the device in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package, avoiding touching the pins or die. Use anti-static packaging and follow MACOM's recommended storage and handling procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XL1010-QT-0G0T Overview

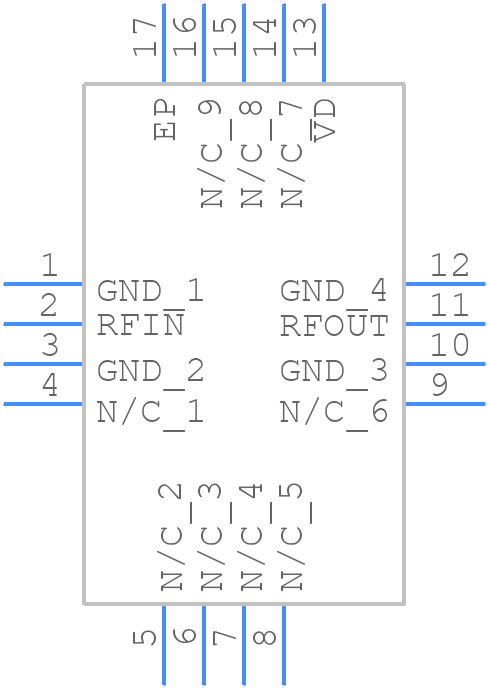

Use the download button to access the XL1010-QT-0G0T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XL101,
or try a keyword search, such as RF/Microwave Amplifiers
