XL9005 - XLSEMI

Description: 3.0A 200KHz 50V Synchronous Buck DC to DC Converter With CV/CC Loop XL9005

Download XL9005 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XL9005 model

Email notifications will be applied after download.

Send part feedback

Symbol

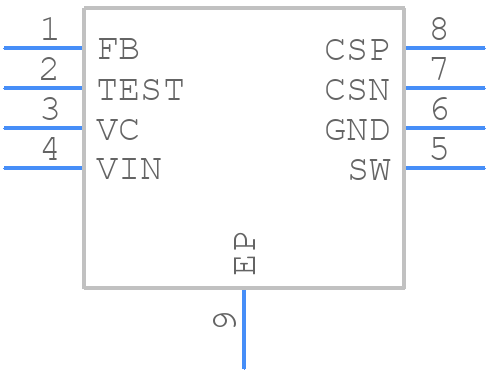

XL9005 - XLSEMI - PCB symbol

PCB Footprints

XL9005 - XLSEMI PCB footprint - Small Outline Packages - Small Outline Packages - SOP8-EP

3D Models

XL9005 - XLSEMI - 3D model - Small Outline Packages - SOP8-EP

Datasheet Download Datasheet
Stock & Prices Price & Stock for XL9005
Part Number XL9005
Manufacturer XLSEMI
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP8-EP
Released Date Oct 24, 2025
Last Modified Date Oct 24, 2025 10:11 AM UTC
