XLF-133+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS LOW PASS FILTER

Download XLF-133+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

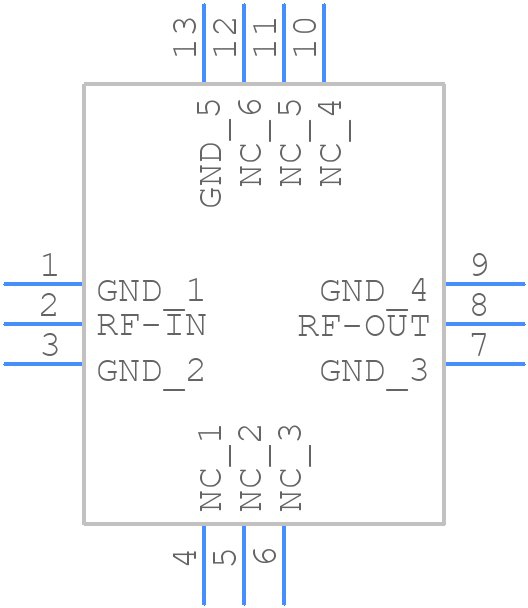

XLF-133+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XLF-133+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225
click to zoom
3D Models
XLF-133+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225
click to zoom

XLF-133+ Details

  • Manufacturer Part Number:

    XLF-133+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMALL, DQ1225, QFN, 12 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.2

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    15800 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.4 dB

  • JESD-609 Code:

    e2

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR:

    1.3

  • Width:

    3 mm

XLF-133+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications. The recommended layout includes a ground plane, 50-ohm transmission lines, and proper decoupling.
  • The XLF-133+ can be biased in various configurations, including single-supply, dual-supply, and bias-T. The choice of biasing configuration depends on the specific application requirements, such as frequency range, power supply, and signal amplitude. Consult the application notes and Mini-Circuits' technical support for guidance on selecting the correct biasing configuration.
  • While the datasheet specifies a maximum input power of +15 dBm, the actual power handling capability depends on the operating frequency, temperature, and other factors. As a general rule, it's recommended to derate the power handling by 3-5 dB to ensure reliable operation. Consult with Mini-Circuits' technical support for specific guidance on power handling for your application.
  • Proper thermal management is crucial for high-power applications. Ensure good heat sinking, use thermal interface materials, and consider using a heat sink or thermal pad on the XLF-133+. The device's thermal resistance (θjc) is specified in the datasheet. Consult with thermal management experts or Mini-Circuits' technical support for guidance on thermal design.
  • Mini-Circuits provides guidelines for soldering and assembly in their application notes. It's essential to follow these guidelines to prevent damage to the device. Use a controlled soldering process, avoid excessive heat, and ensure proper cleaning and handling of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XLF-133+ Overview

Use the download button to access the XLF-133+ schematic symbol, PCB footprint, and 3D model.
