XLF-13H+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS LOW PASS FLTR

Download XLF-13H+ Model

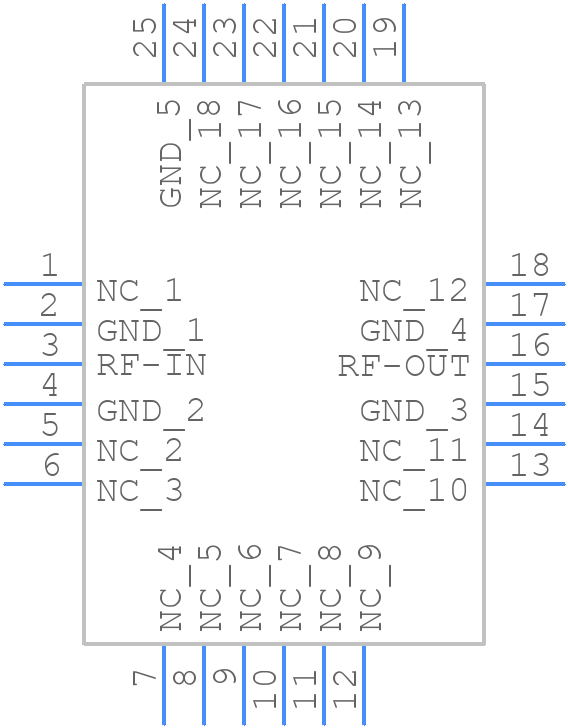

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XLF-13H+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4 x 4mm QFN
click to zoom
3D Models
XLF-13H+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 4 x 4mm QFN
click to zoom

XLF-13H+ Details

  • Manufacturer Part Number:

    XLF-13H+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Average Input Power:

    7.9 W

  • Center or Cutoff Frequency (fo/fc):

    1150 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7/13 INCH

  • Terminal Finish:

    Tin (Sn)

  • VSWR:

    1.3

  • Width:

    4 mm

XLF-13H+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications. The recommended layout includes a ground plane, 50-ohm transmission lines, and proper decoupling.
  • To achieve the best possible noise figure, ensure that the input and output are properly matched to 50 ohms, and the device is operated within its recommended operating conditions. Additionally, use a high-quality, low-noise power supply, and consider using a noise-reducing component, such as a ferrite bead, in the power supply line.
  • While the datasheet doesn't explicitly state the maximum power handling capability, Mini-Circuits recommends that the input power should not exceed +15 dBm to prevent damage to the device. Exceeding this limit may result in reduced performance, reliability issues, or even permanent damage.
  • Yes, the XLF-13H+ can be used in a push-pull or balanced configuration. However, it's essential to ensure that the device is properly biased and matched to achieve optimal performance. Mini-Circuits provides application notes and design guidelines for these configurations.
  • To troubleshoot common issues, start by verifying that the device is properly biased and matched. Check the PCB layout and ensure that it follows the recommended guidelines. Also, verify that the power supply is stable and low-noise. If issues persist, consult Mini-Circuits' application notes and technical support resources for guidance.
