XLF-151+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS LOW PASS FILTER

Download XLF-151+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

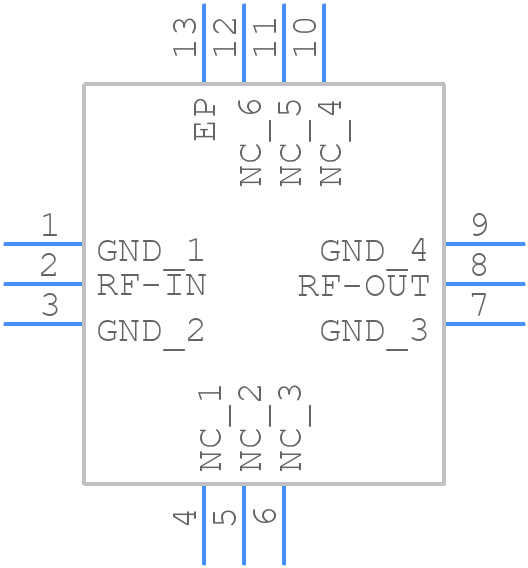

XLF-151+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XLF-151+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12-1
click to zoom
3D Models
XLF-151+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-12-1
click to zoom

XLF-151+ Details

  • Manufacturer Part Number:

    XLF-151+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.9

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    280 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm

XLF-151+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The XLF-151+ has a nominal impedance of 50 ohms. To impedance match, you can use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The maximum power handling of the XLF-151+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power and 2W of peak power. It's essential to derate the power handling based on the operating frequency and temperature.
  • The XLF-151+ is a commercial-grade component, and its reliability and performance in high-reliability or space applications are not guaranteed. Mini-Circuits offers a range of high-reliability components, such as the XLF-151H+, which is designed for high-reliability applications.
  • Common issues with the XLF-151+ include poor return loss, high insertion loss, and overheating. To troubleshoot, check the PCB layout and footprint, ensure proper impedance matching, and verify the power handling. Mini-Circuits also provides a troubleshooting guide on their website.
