- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XLF-641M+
- Part Number XLF-641M+
- Manufacturer Mini-Circuits
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - XLF-641M+-+
- Released Date Mar 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XLF-641M+ Details
-
Manufacturer Part Number:
XLF-641M+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7.35
-
Average Input Power:
5 W
-
Center or Cutoff Frequency (fo/fc):
640 MHz
-
Filter Type:
LOW PASS FILTER
-
Height:
0.99 mm
-
Input Impedance:
50 OHM
XLF-641M+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and their values.
-
The maximum power handling of the XLF-641M+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
-
While the XLF-641M+ is primarily designed for linear applications, it can be used in switching applications with caution. However, the device's performance and reliability may be affected by the high-frequency switching signals. It's recommended to consult with Mini-Circuits' application engineers to determine the feasibility of using the XLF-641M+ in a switching application.
-
The operating temperature range of the XLF-641M+ is -40°C to +85°C. However, the device's performance and reliability may be affected by extreme temperatures. It's essential to consult the datasheet and application notes for temperature-related derating and compensation.
Trust Checks
Community Provided
System Verified
Community Approved
XLF-641M+ Overview

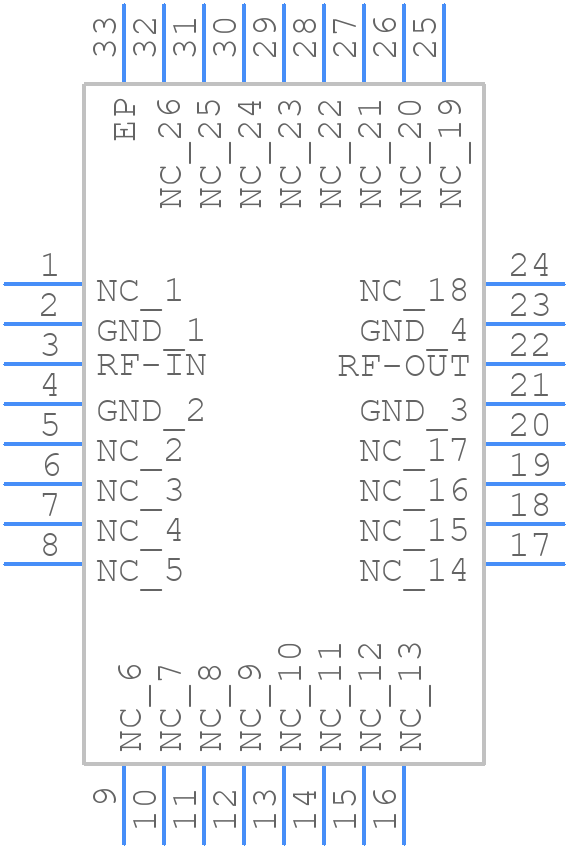

Use the download button to access the XLF-641M+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLF-6,
or try a keyword search, such as General Purpose Passive Filters
