XLF-662M+ - Mini-Circuits

Description: Reflectionless Low Pass Filter, DC - 6000 MHz, 50Ω

Download XLF-662M+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

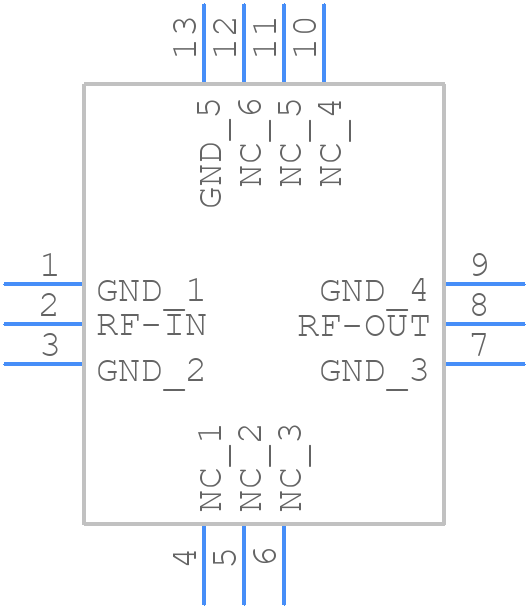

XLF-662M+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XLF-662M+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225_2023-1
click to zoom
3D Models
XLF-662M+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225_2023-1
click to zoom

XLF-662M+ Details

  • Manufacturer Part Number:

    XLF-662M+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    6740 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.1 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    2

  • Number of Sections-Min:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm

XLF-662M+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits recommends using their impedance matching calculator tool, which can be found on their website. The tool provides a simple and accurate way to determine the required impedance matching components.
  • While the datasheet doesn't explicitly state the maximum power handling, Mini-Circuits recommends derating the power handling to 1W or less to ensure reliable operation and prevent overheating. Exceeding this power handling may result in reduced performance, overheating, or even device failure.
  • The XLF-662M+ is rated for operation up to 85°C. However, for reliable operation, it's recommended to derate the operating temperature to 70°C or less. Exceeding the recommended temperature may result in reduced performance, overheating, or even device failure.
  • Mini-Circuits provides a troubleshooting guide in their application note AN-60-015, which covers common issues such as poor insertion loss, high return loss, and overheating. The guide provides step-by-step troubleshooting procedures to help identify and resolve common problems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XLF-662M+ Overview

Use the download button to access the XLF-662M+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLF-6, or try a keyword search, such as General Purpose Passive Filters
