XLF-861+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS LOW PASS FILTER

Download XLF-861+ Model

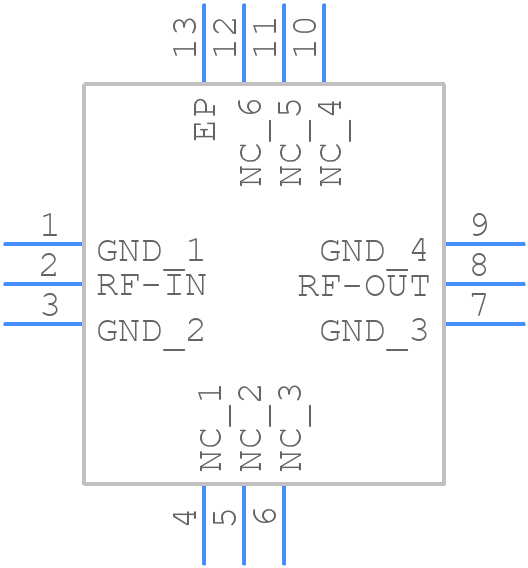

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XLF-861+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom
3D Models
XLF-861+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom

XLF-861+ Details

  • Manufacturer Part Number:

    XLF-861+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.6

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    1150 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm
