XLF-962+ - Mini-Circuits

Description: 12.4GHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 2dB 12-VQFN Exposed Pad

Download XLF-962+ Model

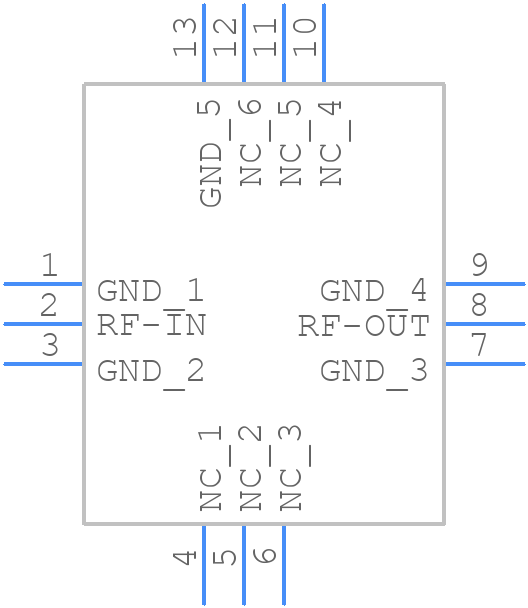

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XLF-962+ - Mini-Circuits PCB footprint - Other - Other - DQ1225_2026-1.1
click to zoom
3D Models
XLF-962+ - Mini-Circuits  - 3D model - Other - DQ1225_2026-1.1
click to zoom

XLF-962+ Details

  • Manufacturer Part Number:

    XLF-962+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.2

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    12400 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR:

    1.2

  • Width:

    3 mm

XLF-962+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint for XLF-962+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network to match the 50-ohm input/output impedance of the XLF-962+ to your system's impedance. You can use their online impedance matching tool or consult with their application engineers for assistance.
  • The maximum power handling of XLF-962+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. Exceeding this limit may result in reduced performance, overheating, or even damage to the device.
  • While the XLF-962+ is rated for operation up to 85°C, it's essential to derate the power handling and consider the thermal resistance of the device when operating in high-temperature environments. Consult with Mini-Circuits' application engineers for guidance on using XLF-962+ in extreme temperature conditions.
  • Common issues with XLF-962+ include poor return loss, high insertion loss, or overheating. To troubleshoot, check the PCB layout, impedance matching, and power handling. Ensure that the device is properly soldered and that there are no signs of physical damage. Consult Mini-Circuits' application notes and technical support resources for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XLF-962+ Overview

Use the download button to access the XLF-962+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLF-9, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
