Infineon provides a recommended PCB layout guide in their application note AN1905, which includes guidelines for component placement, routing, and thermal management.
To optimize power consumption, use the device's low-power modes (e.g., sleep mode, standby mode), reduce clock frequencies, and minimize peripheral usage. Additionally, use the device's built-in power management features, such as the Power Management Controller (PMC).
The XMC1301T016F0016ABXUMA1 has an operating temperature range of -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
To ensure EMC, follow Infineon's guidelines for PCB layout, component selection, and shielding. Additionally, use EMI filters, and consider using a metal shield or a Faraday cage to reduce electromagnetic radiation.
Infineon recommends using decoupling capacitors with a value of 100 nF to 1 μF, and a voltage rating of 2.5 V to 3.3 V, placed as close as possible to the device's power pins.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XMC1301T016F0016ABXUMA1 Overview

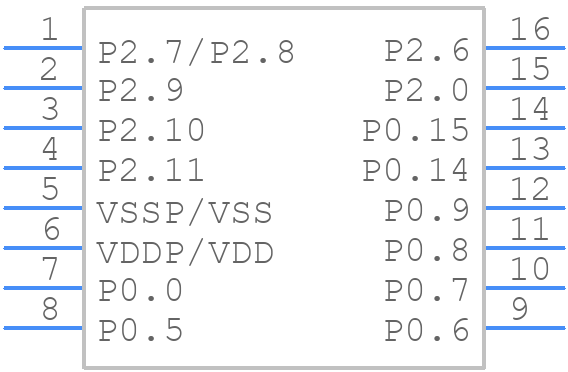

Use the download button to access the XMC1301T016F0016ABXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XMC13,
or try a keyword search, such as Microcontrollers
