XMC1302Q040X0016ABXUMA1 - Infineon

Description: ARM Microcontrollers - MCU XMC1000

Download XMC1302Q040X0016ABXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

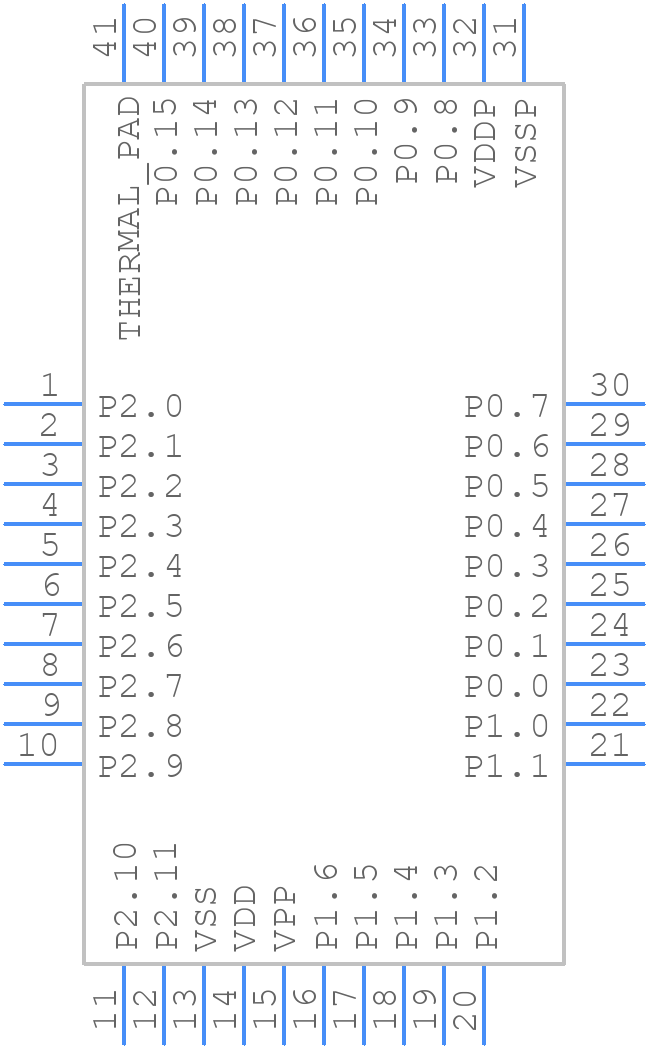

XMC1302Q040X0016ABXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
XMC1302Q040X0016ABXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-40-13
click to zoom
3D Models
XMC1302Q040X0016ABXUMA1 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-40-13
click to zoom

XMC1302Q040X0016ABXUMA1 Details

  • Manufacturer Part Number:

    XMC1302Q040X0016ABXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    17.9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Length:

    4 mm

  • Number of I/O Lines:

    22

  • Number of Terminals:

    24

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XMC1302Q040X0016ABXUMA1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for XMC1302Q040X0016ABXUMA1 is 1.8V to 5.5V.
  • The clock source for XMC1302Q040X0016ABXUMA1 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to select from various clock sources, including internal oscillators, external crystals, and external clock signals.
  • The maximum frequency of the XMC1302Q040X0016ABXUMA1 is 80 MHz.
  • The XMC1302Q040X0016ABXUMA1 can be programmed using the Infineon DAVE (Digital Application Virtual Engineer) development environment, which provides a graphical interface for configuring and programming the device. You can also use other programming tools, such as Keil µVision or IAR Embedded Workbench.
  • The power consumption of the XMC1302Q040X0016ABXUMA1 depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical current consumption is around 20mA at 80MHz and 3.3V.
