Infineon provides a recommended PCB layout guide for the XMC1302Q040X0128ABXUMA1 in the 'XMC1300 PCB Layout Guidelines' document, which can be found on the Infineon website. This guide provides detailed information on component placement, routing, and thermal management to ensure optimal performance and reliability.
The XMC1302Q040X0128ABXUMA1 has a complex clock system that can be configured using the Clock Generation Unit (CGU) and the Power Management Unit (PMU). Infineon provides a detailed application note, 'XMC1300 Clock System Configuration', which explains how to configure the clock system for different operating modes and frequencies.
The XMC1302Q040X0128ABXUMA1 has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and additional thermal management measures may be required for high-temperature applications.
The XMC1302Q040X0128ABXUMA1 has a built-in Secure Boot mechanism that ensures the authenticity and integrity of the firmware. Infineon provides a detailed application note, 'XMC1300 Secure Boot', which explains how to implement secure boot using the XMC1302Q040X0128ABXUMA1's built-in security features, such as the Boot ROM and the Secure Flash.
The power consumption characteristics of the XMC1302Q040X0128ABXUMA1 depend on the operating mode, frequency, and peripheral usage. Infineon provides a detailed power consumption analysis in the 'XMC1300 Power Consumption' application note, which helps designers estimate the power consumption of their application and optimize the system design for low power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XMC1302Q040X0128ABXUMA1 Overview

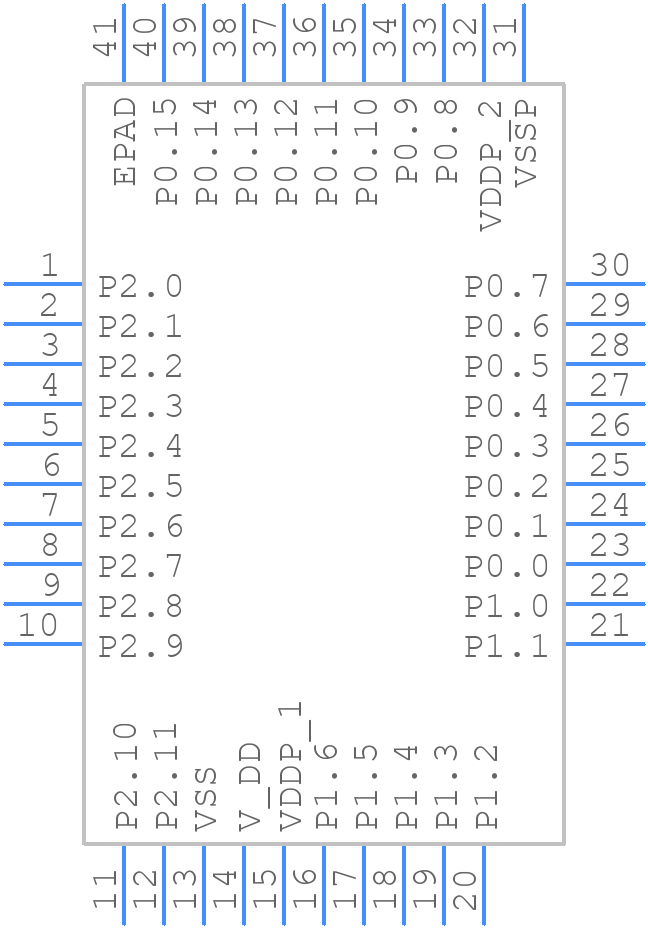

Use the download button to access the XMC1302Q040X0128ABXUMA1 schematic symbol, PCB footprint, and 3D model.
