XMC1302Q040X0200ABXUMA1 - Infineon

Description: ARM Microcontrollers - MCU XMC1000

Download XMC1302Q040X0200ABXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

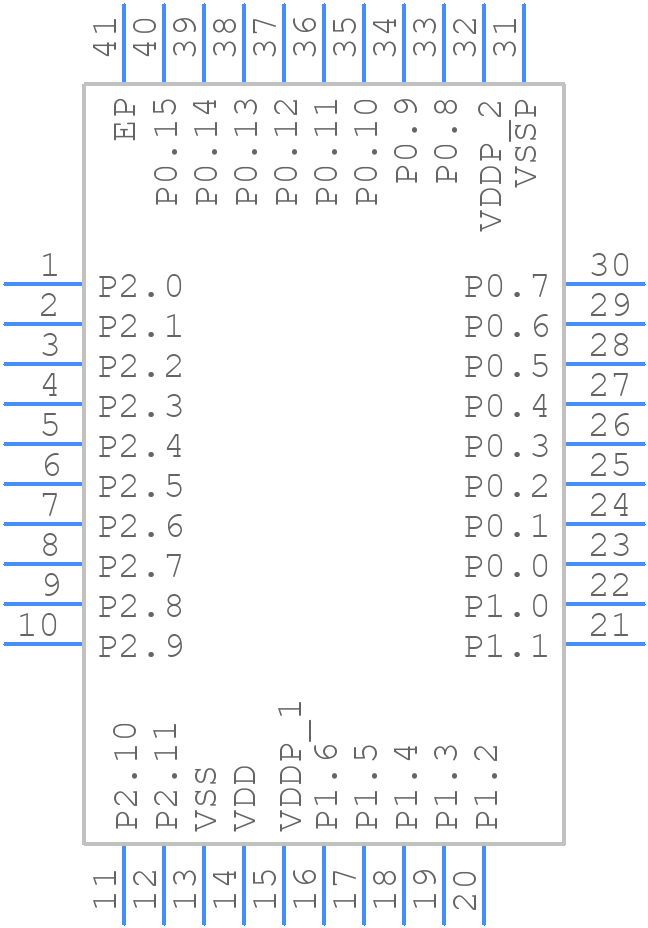

XMC1302Q040X0200ABXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
XMC1302Q040X0200ABXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-40-13*
click to zoom
3D Models
XMC1302Q040X0200ABXUMA1 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-40-13*
click to zoom

XMC1302Q040X0200ABXUMA1 Details

  • Manufacturer Part Number:

    XMC1302Q040X0200ABXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Number of I/O Lines:

    22

  • Number of Terminals:

    24

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XMC1302Q040X0200ABXUMA1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the XMC1302Q040X0200ABXUMA1 is 1.8V to 5.5V.
  • The clock settings for the XMC1302Q040X0200ABXUMA1 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to configure the clock sources, clock frequencies, and clock dividers.
  • The maximum clock frequency supported by the XMC1302Q040X0200ABXUMA1 is 80 MHz.
  • The ADC module on the XMC1302Q040X0200ABXUMA1 can be used by configuring the ADC channels, setting the ADC clock, and enabling the ADC interrupts. The ADC module supports up to 12-bit resolution and has a maximum sampling rate of 1.2 MSPS.
  • The NVM module on the XMC1302Q040X0200ABXUMA1 is used to store program code, data, and configuration settings. The NVM module consists of flash memory, EEPROM, and OTP (One-Time Programmable) memory.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XMC1302Q040X0200ABXUMA1 Overview

Use the download button to access the XMC1302Q040X0200ABXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XMC13, or try a keyword search, such as Microcontrollers
