Infineon provides a recommended PCB layout guide in the XMC1300 series user manual, which includes guidelines for component placement, routing, and thermal management.
To optimize power consumption, use the XMC1302's low-power modes (e.g., sleep, standby), reduce clock frequencies, and use the peripheral's power-down modes. Additionally, optimize your firmware to minimize CPU activity and use the DMA controller to offload tasks.
Yes, the XMC1302 can operate with a 3.3V power supply, but ensure that the voltage regulator and power supply can provide the required current. Also, note that some peripherals may have specific voltage requirements.
Infineon provides a secure boot and firmware update solution using the XMC1302's built-in ROM bootloader and the DAVE 4 development environment. This includes features like secure firmware encryption, digital signatures, and secure boot mechanisms.
The XMC1302 has an operating temperature range of -40°C to +125°C, but note that some peripherals may have specific temperature limitations. Always check the datasheet and user manual for specific temperature-related information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XMC1302T028X0200ABXUMA1 Overview

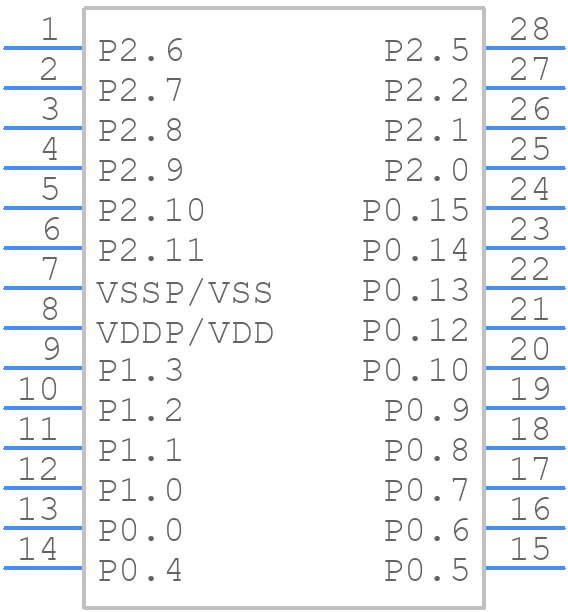

Use the download button to access the XMC1302T028X0200ABXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XMC13,
or try a keyword search, such as Microcontrollers
