XMC1402Q040X0064AAXUMA1 - Infineon

Description: MCU 32-bit ARM Cortex M0 RISC 64KB Flash 3.3V/5V 40-Pin VQFN EP T/R

Download XMC1402Q040X0064AAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

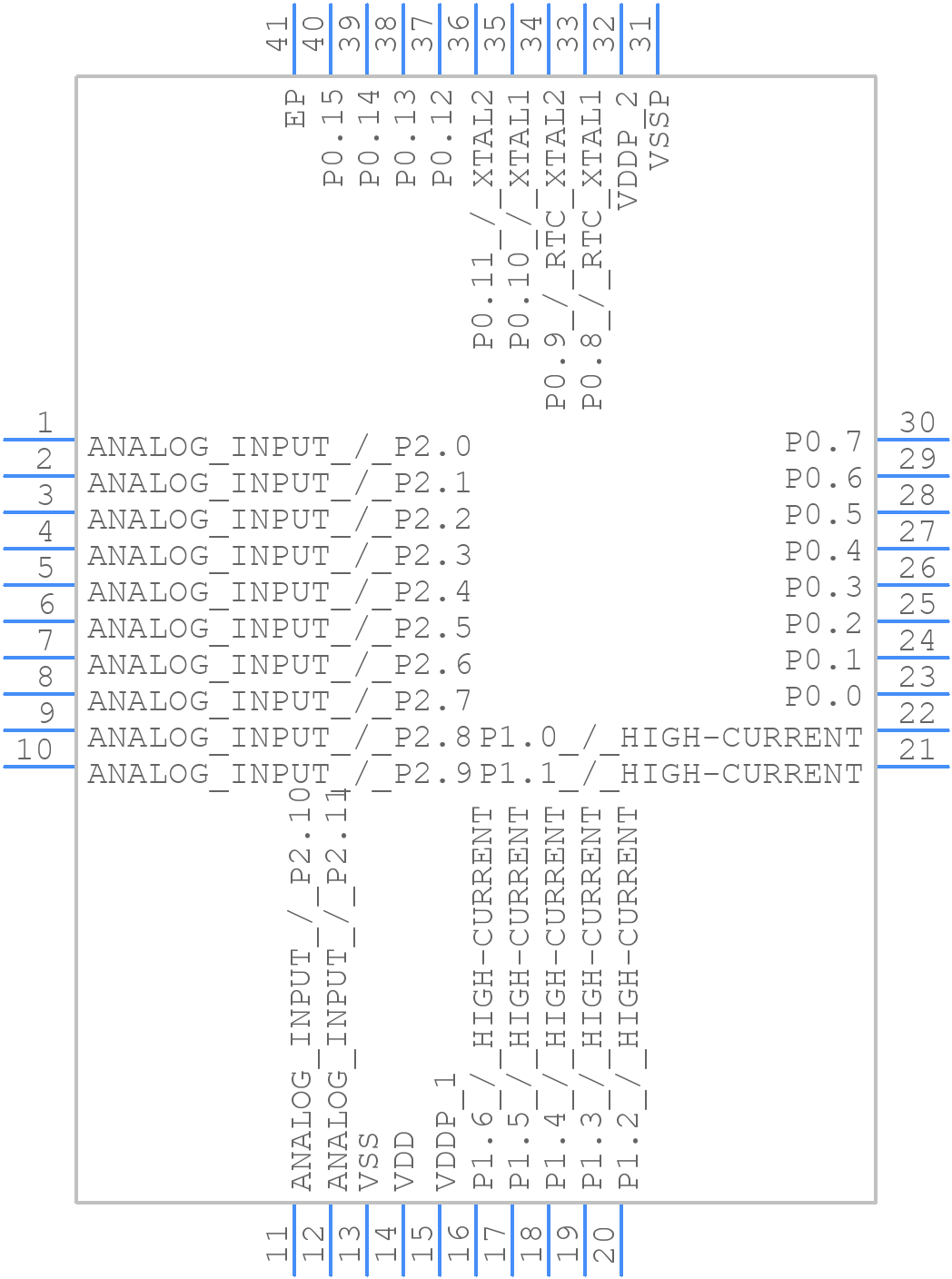

Symbol
XMC1402Q040X0064AAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
XMC1402Q040X0064AAXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-40-13
click to zoom
3D Models
XMC1402Q040X0064AAXUMA1 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-40-13
click to zoom

XMC1402Q040X0064AAXUMA1 Details

  • Manufacturer Part Number:

    XMC1402Q040X0064AAXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-40

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    CONNECTIVITY, PERIPHERALS CONSIDERED FROM SDOC

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    35

  • Number of Terminals:

    40

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    16384

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XMC1402Q040X0064AAXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout for the XMC1402Q040X0064AAXUMA1 in the 'Layout Recommendations' section of the datasheet. However, for optimal thermal performance, it is recommended to use a 4-layer PCB with a solid ground plane, and to place thermal vias under the device to dissipate heat efficiently.
  • The clock settings for the XMC1402 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to configure the clock sources, clock dividers, and clock outputs. You can use the Infineon DAVE development environment or the XMC1402 datasheet to find more information on how to configure the clock settings.
  • The maximum operating temperature range for the XMC1402Q040X0064AAXUMA1 is -40°C to 125°C. However, the device can be operated at a reduced frequency and voltage at higher temperatures to ensure reliable operation.
  • The XMC1402 has a built-in watchdog timer (WDT) module that can be used to reset the device in case of a software fault. The WDT can be configured using the WDT control register, and the timeout period can be set using the WDT clock divider register. You can find more information on how to implement a watchdog timer in the XMC1402 datasheet.
  • The recommended power-up sequence for the XMC1402 is to first apply the voltage to the VDD pin, followed by the voltage to the VCC pin. The power-up sequence should be controlled to ensure that the voltage on the VDD pin reaches its minimum specified value before the voltage on the VCC pin reaches its minimum specified value.
